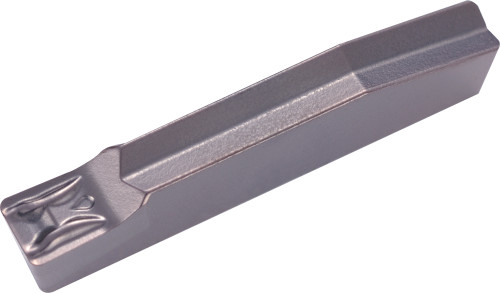

Kyocera GDMS 2220N020GM PR1225 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE10610
$29.63
Kyocera GDMS 2220N020GM PR1225 Grade PVD Carbide, 2.20mm Groove Width, Neutral Grooving Insert for Continuous and Medium-Roughing in (P) Steel and (M) Stainless Steel

Specifications

Series
KGD
Unit of Measure
Metric
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
0.20
Grade
PR1225
Cutting Width
2.20 mm
Thickness (Metric)
4.30
Cutting Width (Decimal)
0.09
Style
GDMS
Application
External Grooving|Traversing
Chip Breaker Type
GM
Thickness (Decimal)
0.17
Insert Holding Method
Clamp
Insert Length (Decimal)
0.79
Insert Length (Metric)
20
Size
2220
Old Material Number
8834604
ANSI Part Number
GDMS2220N020GMPR1225
ISO Part Number
GDMS2220N-020GM
Rake
Positive
Number of Cutting Edges
1
Hand of Holder
Neutral
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Continuous
Corner Radius (Decimal)
0.01
Cutting Width Minimum (Decimal)
0.09
Cutting Width Minimum (Metric)
2.20
Cutting Width Maximum (Decimal)
0.09
Cutting Width Maximum (Metric)
2.20
Max Depth of Cut (Decimal)
0.67
Max Depth of Cut (Metric)
17
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KGD_KGDF_Grooving_and_Cut-Off.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
