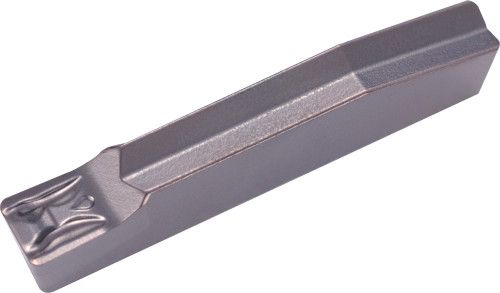

ISO Designation
GDMS3020N-040GM
Corner Radius (Metric)
0.40
Corner Radius (Fractional)
1/64
Insert Thickness (Metric)
4.30
Cutting Width (Metric)
3.00
Machining Operations
External Grooving, Traversing
Cutting Width (Decimal)
0.1181
ANSI Designation
GDMS3020N040GMPR1225
Insert Holding Method
Clamp
Insert Length (Decimal)
0.7874
Insert Length (Metric)
20.00
Secondary Workpiece Material
Stainless Steel
Number of Cutting Edges
1
Cutting Range
Medium-Roughing
Usage Classification
Continuous
Cutting Width Minimum (Decimal)
0.1181
Cutting Width Minimum (Metric)
3.00
Cutting Width Maximum (Decimal)
0.1181
Cutting Width Maximum (Metric)
3.00
Maximum Depth of Cut (Decimal)
1.0039
Maximum Depth of Cut (Metric)
25.50
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KGD_KGDF_Grooving_and_Cut-Off.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/JCT-Series_Coolant-Through_Holders.pdf
Insert Thickness (Decimal)
0.1690
