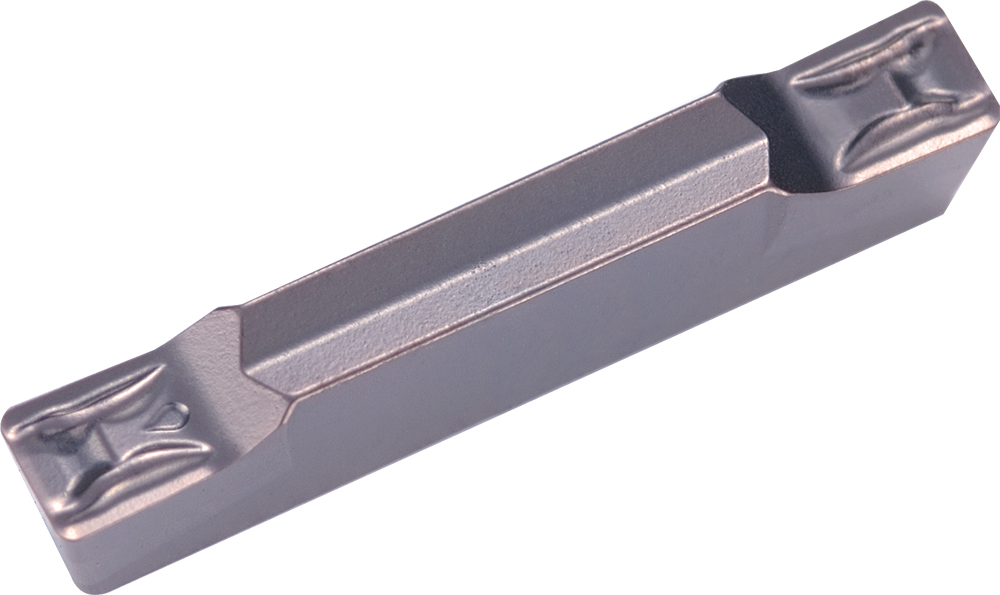

Kyocera GDM 5020N040GMI PR1225 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE10950
$49.09
Kyocera GDM 5020N040GMI PR1225 Grade PVD Carbide, 5.00mm Groove Width, Neutral Grooving Insert for Continuous and Medium-Roughing in (P) Steel and (M) Stainless Steel

Specifications

Series
KGD
Unit of Measure
Metric
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
0.40
Corner Radius (Fractional)
1/64
Grade
PR1225
Cutting Width
5 mm
Thickness (Metric)
4.30
Cutting Width (Decimal)
0.20
Style
GDM
Application
Internal Grooving
Chip Breaker Type
GMI
Thickness (Decimal)
0.17
Insert Holding Method
Clamp
Insert Length (Decimal)
0.79
Insert Length (Metric)
20
Size
5020
Old Material Number
8845450
ANSI Part Number
GDM5020N040GMIPR1225
ISO Part Number
GDM5020N-040GMI
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Neutral
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Continuous
Cutting Width Minimum (Decimal)
0.20
Cutting Width Minimum (Metric)
5
Cutting Width Maximum (Decimal)
0.20
Cutting Width Maximum (Metric)
5
Max Depth of Cut (Decimal)
0.43
Max Depth of Cut (Metric)
11
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KGDI_Internal_Grooving.pdf
Kyocera GDM 5020N040GMI PR1225 Grade PVD Carbide, Indexable Grooving Insert
$49.09
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
