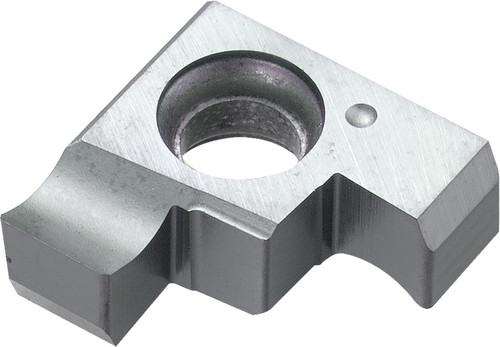

Kyocera GE R120005A TN6020 Grade Uncoated Cermet, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSQ16710
$56.85
Kyocera GE R120005A TN6020 Grade Uncoated Cermet, 1.20mm Groove Width, Right-Hand Grooving Insert for Continuous and Finishing-Medium in (P) Steel and (M) Stainless Steel

Specifications

Series
SIGE
Unit of Measure
Metric
Material
Cermet
Coating/Finish
Uncoated
ANSI Designation
GER120005ATN6020
Corner Radius (Metric)
0.05
ISO Designation
GER120-005A
Cutting Width (Metric)
1.20
Insert Thickness (Metric)
2.58
Cutting Width (Decimal)
0.0472
Insert Style
GE
Machining Operations
Internal Grooving
Insert Shape
Irregular
Insert Holding Method
Screw
Insert Length (Decimal)
0.2559
Insert Length (Metric)
6.50
Insert Size
120005
Old Material Number
8822778
Insert Grade
TN6020
Workpiece Material
Steel, Stainless Steel
Rake
Positive
Number of Cutting Edges
2
Hand Direction
Right
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Continuous
Corner Radius (Decimal)
0.0020
Cutting Width Minimum (Decimal)
0.0472
Cutting Width Minimum (Metric)
1.20
Cutting Width Maximum (Decimal)
0.0472
Cutting Width Maximum (Metric)
1.20
Maximum Depth of Cut (Decimal)
0.0591
Maximum Depth of Cut (Metric)
1.50
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/sige_brochure.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
Insert Thickness (Decimal)
0.1020
