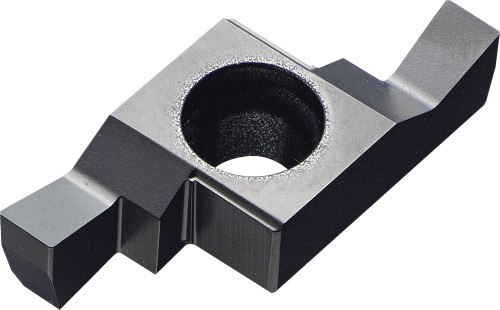

Kyocera Grooving Insert GER120005C PR1225: TKE16956
SKU: KYP-TKE16956
Kyocera Grooving Insert GER120005C GW15, manufacturer part number TWG16956.
Specifications: Insert Thickness: 4.05 mm (0.1590 in); Corner Radius: 0.05 mm (0.0020 in); Cutting Width: 1.20 mm (0.0472 in); Insert Holding Method: Screw; Insert Length: 11.48 mm (0.4520 in); Old Material Number: 8825707; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing-Medium; Full Radius: No; Usage Classification: Continuous to Light Interruption; Cutting Width Minimum: 1.20 mm (0.0472 in); Cutting Width Maximum: 1.20 mm (0.0472 in); Maximum Depth of Cut: 2.50 mm (0.0984 in); Insert Shape: Irregular; Insert Size: 120005; Insert Style: GE; Hand Direction: Right; ANSI Designation: GER120005CGW15; ISO Designation: GER120-005C; Machining Operations: Internal Grooving; Insert Grade: GW15; Workpiece Material: Non-Ferrous, High-Temp Alloy.
Material: Carbide. Coating/Finish: Uncoated. Series: SIGE. Unit of measure: Metric.
