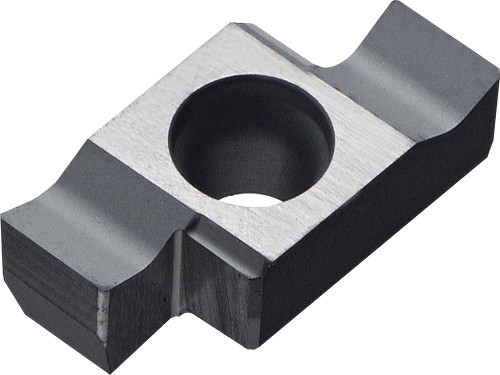

Kyocera GE R300020C GW15 Grade Uncoated Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWG17016
$55.46
Kyocera GE R300020C GW15 Grade Uncoated Carbide, 3.00mm Groove Width, Right-Hand Grooving Insert for Light Interruption and Finishing-Medium in (N) Non-Ferrous Metals and (S) Heat-Resistant Alloy

Specifications

Series
SIGE
Unit of Measure
Metric
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials
Corner Radius (Metric)
0.20
Grade
GW15
Cutting Width
3 mm
Thickness (Metric)
4.05
Cutting Width (Decimal)
0.12
Style
GE
Application
Internal Grooving
Thickness (Decimal)
0.16
Insert Holding Method
Screw
Insert Length (Decimal)
0.45
Insert Length (Metric)
11.48
Size
300020
Old Material Number
8825809
ANSI Part Number
GER300020CGW15
ISO Part Number
GER300-020C
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Right
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Light Interruption
Corner Radius (Decimal)
0.01
Cutting Width Minimum (Decimal)
0.12
Cutting Width Minimum (Metric)
3
Cutting Width Maximum (Decimal)
0.12
Cutting Width Maximum (Metric)
3
Max Depth of Cut (Decimal)
0.10
Max Depth of Cut (Metric)
2.50
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/sige_brochure.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
Kyocera GE R300020C GW15 Grade Uncoated Carbide, Indexable Grooving Insert
$55.46
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
