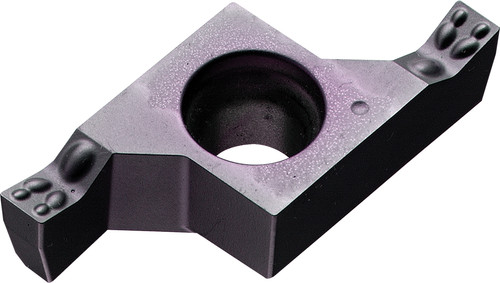

Kyocera GE R200010DM PR1225 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE17104
$44.92
Kyocera GE R200010DM PR1225 Grade PVD Carbide, 2.00mm Groove Width, Right-Hand Grooving Insert for Continuous and Medium-Roughing in (P) Steel and (M) Stainless Steel

Specifications

Series
SIGE
Unit of Measure
Metric
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
0.10
Grade
PR1225
Cutting Width
2 mm
Thickness (Metric)
5.05
Cutting Width (Decimal)
0.08
Style
GE
Application
Internal Grooving
Chip Breaker Type
M
Thickness (Decimal)
0.20
Insert Holding Method
Screw
Insert Length (Decimal)
0.65
Insert Length (Metric)
16.44
Size
200010
Old Material Number
8836825
ANSI Part Number
GER200010DMPR1225
ISO Part Number
GER200-010DM
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Right
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Continuous
Corner Radius (Decimal)
0.004
Cutting Width Minimum (Decimal)
0.08
Cutting Width Minimum (Metric)
2
Cutting Width Maximum (Decimal)
0.08
Cutting Width Maximum (Metric)
2
Max Depth of Cut (Decimal)
0.13
Max Depth of Cut (Metric)
3.20
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/sige_brochure.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
Kyocera GE R200010DM PR1225 Grade PVD Carbide, Indexable Grooving Insert
$44.92
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
