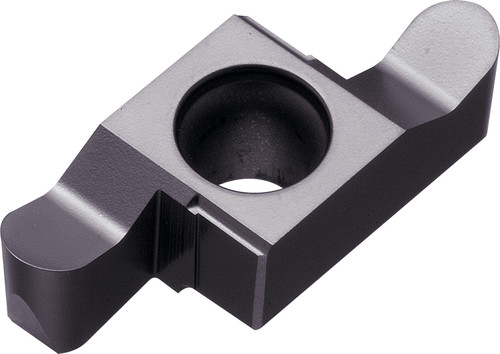

Kyocera Grooving Insert GER300150DR PR1225: TKE17142

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE17142
$85.70

Kyocera SIGE grooving insert for steel, irregular shape, positive rake, 2 cutting edges, medium-roughing cutting range, screw insert holding, right hand. Carbide, MEGACOAT (PVD) coating. Manufacturer part number TKE17142.

Specifications

Series
SIGE
Unit of Measure
Metric
Material
Carbide
Coating/Finish
MEGACOAT
ANSI Designation
GER300150DRPR1225
Corner Radius (Metric)
1.50
ISO Designation
GER300-150DR
Cutting Width (Metric)
3.00
Insert Thickness (Metric)
5.05
Cutting Width (Decimal)
0.1181
Insert Style
GE
Machining Operations
Internal Grooving
Insert Shape
Irregular
Insert Holding Method
Screw
Insert Length (Decimal)
0.6472
Insert Length (Metric)
16.44
Insert Size
300150
Secondary Workpiece Material
Stainless Steel
Insert Grade
PR1225
Workpiece Material
Steel
Rake
Positive
Number of Cutting Edges
2
Hand Direction
Right
Cutting Range
Medium-Roughing
Full Radius
Yes
Usage Classification
Continuous
Corner Radius (Decimal)
0.0590
Cutting Width Minimum (Decimal)
0.1181
Cutting Width Minimum (Metric)
3.00
Cutting Width Maximum (Decimal)
0.1181
Cutting Width Maximum (Metric)
3.00
Maximum Depth of Cut (Decimal)
0.1772
Maximum Depth of Cut (Metric)
4.50
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/sige_brochure.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
Coating Process
PVD
Insert Thickness (Decimal)
0.1990
Kyocera Grooving Insert GER300150DR PR1225: TKE17142
$85.70
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
