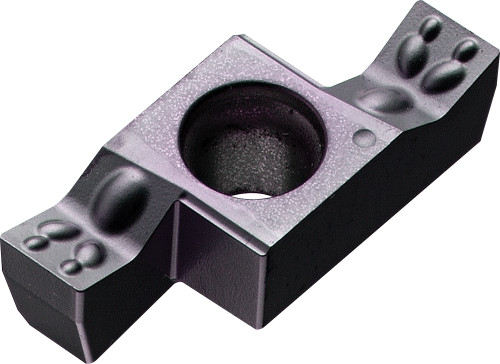

Kyocera Grooving Insert GER350020CM PR1225: TKE17024

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE17024
$44.92

Kyocera SIGE grooving insert for steel, irregular shape, positive rake, 2 cutting edges, medium-roughing cutting range, screw insert holding, right hand. Carbide, MEGACOAT (PVD) coating. Manufacturer part number TKE17024.

Specifications

Series
SIGE
Unit of Measure
Metric
Material
Carbide
Coating/Finish
MEGACOAT
ANSI Designation
GER350020CMPR1225
Corner Radius (Metric)
0.20
ISO Designation
GER350-020CM
Cutting Width (Metric)
3.50
Insert Thickness (Metric)
4.05
Cutting Width (Decimal)
0.1378
Insert Style
GE
Machining Operations
Internal Grooving
Chip Breaker Type
M
Insert Shape
Irregular
Insert Holding Method
Screw
Insert Length (Decimal)
0.4520
Insert Length (Metric)
11.48
Insert Size
350020
Secondary Workpiece Material
Stainless Steel
Insert Grade
PR1225
Workpiece Material
Steel
Rake
Positive
Number of Cutting Edges
2
Hand Direction
Right
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Continuous
Corner Radius (Decimal)
0.0080
Cutting Width Minimum (Decimal)
0.1378
Cutting Width Minimum (Metric)
3.50
Cutting Width Maximum (Decimal)
0.1378
Cutting Width Maximum (Metric)
3.50
Maximum Depth of Cut (Decimal)
0.0984
Maximum Depth of Cut (Metric)
2.50
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/sige_brochure.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
Coating Process
PVD
Insert Thickness (Decimal)
0.1590
