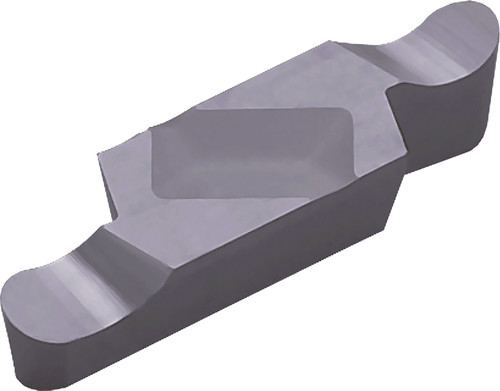

Kyocera Grooving Insert GVFR300150BR PR1225: TKE15874

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE15874
$96.61

Kyocera GFV grooving insert for steel, irregular shape, positive rake, 2 cutting edges, medium-roughing cutting range, clamp insert holding, right hand. Carbide, MEGACOAT (PVD) coating. Manufacturer part number TKE15874.

Specifications

Series
GFV
Unit of Measure
Metric
Material
Carbide
Coating/Finish
MEGACOAT
ISO Designation
GVFR300-150BR
Corner Radius (Metric)
1.50
Insert Thickness (Metric)
5.00
Cutting Width (Metric)
3.00
Insert Shape
Irregular
Cutting Width (Decimal)
0.1181
Insert Style
GVF
Machining Operations
Face Grooving
Chip Breaker Type
BR
ANSI Designation
GVFR300150BRPR1225
Insert Holding Method
Clamp
Insert Length (Decimal)
0.7874
Insert Length (Metric)
20.00
Insert Size
300150
Secondary Workpiece Material
Stainless Steel
Insert Grade
PR1225
Workpiece Material
Steel
Rake
Positive
Number of Cutting Edges
2
Hand Direction
Right
Cutting Range
Medium-Roughing
Full Radius
Yes
Usage Classification
Continuous
Corner Radius (Decimal)
0.0590
Cutting Width Minimum (Decimal)
0.1181
Cutting Width Minimum (Metric)
3.00
Cutting Width Maximum (Decimal)
0.1181
Cutting Width Maximum (Metric)
3.00
Maximum Depth of Cut (Decimal)
0.1890
Maximum Depth of Cut (Metric)
4.80
Pack quantity
10
Coating Process
PVD
Insert Thickness (Decimal)
0.1970
Kyocera Grooving Insert GVFR300150BR PR1225: TKE15874
$96.61
