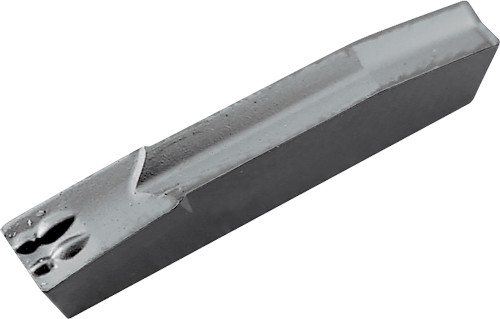

Kyocera GM R2215D TN90 Grade Uncoated Cermet, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TSO12503
$27.27
Kyocera GM R2215D TN90 Grade Uncoated Cermet, 2.20mm Groove Width, Right-Hand Grooving Insert for Continuous and Finishing-Medium in (P) Steel and (M) Stainless Steel

Specifications

Series
KGM
Unit of Measure
Metric
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Steel
Grade
TN90
Cutting Width
2.20 mm
Thickness (Metric)
4.30
Cutting Width (Decimal)
0.09
Style
GM
Application
Cut-Off|External Deep Grooving|External Grooving
Chip Breaker Type
D
Thickness (Decimal)
0.17
Insert Holding Method
Clamp
Insert Length (Decimal)
0.79
Insert Length (Metric)
20
Size
2215
Old Material Number
8811333
ANSI Part Number
GMR2215DTN90
ISO Part Number
GMR2.2-15D
Rake
Positive
Number of Cutting Edges
1
Hand of Holder
Right
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Continuous
Cutting Width Minimum (Decimal)
0.09
Cutting Width Minimum (Metric)
2.20
Cutting Width Maximum (Decimal)
0.09
Cutting Width Maximum (Metric)
2.20
Max Depth of Cut (Decimal)
0.67
Max Depth of Cut (Metric)
17
Pack quantity
10
