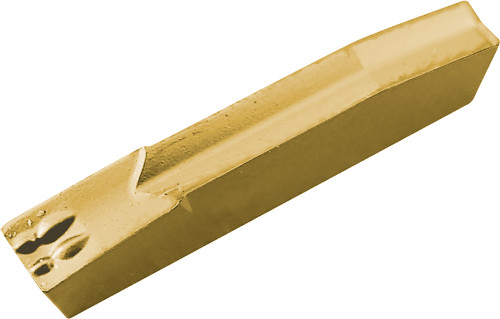

Kyocera GM R228D CR9025 Grade CVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKW12501
$29.74
Kyocera GM R228D CR9025 Grade CVD Carbide, 2.20mm Groove Width, Right-Hand Grooving Insert for Light Interruption and Finishing-Medium in (P) Steel

Specifications

Series
KGM
Unit of Measure
Metric
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
0.17
Grade
CR9025
Cutting Width
2.20 mm
Thickness (Metric)
4.30
Cutting Width (Decimal)
0.09
Style
GM
Application
Cut-Off|External Deep Grooving|External Grooving
Chip Breaker Type
D
Thickness (Decimal)
0.17
Insert Holding Method
Clamp
Insert Length (Decimal)
0.79
Insert Length (Metric)
20
Size
228
Old Material Number
8801466
ANSI Part Number
GMR228DCR9025
ISO Part Number
GMR2.2-8D
Rake
Positive
Number of Cutting Edges
1
Hand of Holder
Right
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Light Interruption
Corner Radius (Decimal)
0.01
Cutting Width Minimum (Decimal)
0.09
Cutting Width Minimum (Metric)
2.20
Cutting Width Maximum (Decimal)
0.09
Cutting Width Maximum (Metric)
2.20
Max Depth of Cut (Decimal)
0.67
Max Depth of Cut (Metric)
17
Pack quantity
10
