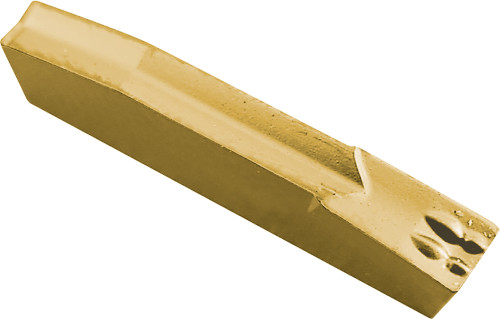

Kyocera Grooving Insert GML34D CR9025: TKW12552

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKW12552
$29.74

Kyocera KGM grooving insert for steel, irregular shape, positive rake, 1 cutting edge, finishing-medium cutting range, clamp insert holding, left hand. Carbide, TiCN/TiN (CVD) coating. Manufacturer part number TKW12552.

Specifications

Series
KGM
Unit of Measure
Metric
Material
Carbide
Coating/Finish
TiCN/TiN
ISO Designation
GML3-4D
Corner Radius (Metric)
0.20
Insert Thickness (Metric)
4.30
Cutting Width (Metric)
3.00
Machining Operations
Cut-Off, External Deep Grooving, External Grooving
Cutting Width (Decimal)
0.1181
Insert Style
GM
ANSI Designation
GML34DCR9025
Chip Breaker Type
D
Insert Shape
Irregular
Insert Holding Method
Clamp
Insert Length (Decimal)
0.7874
Insert Length (Metric)
20.00
Insert Size
34
Insert Grade
CR9025
Workpiece Material
Steel
Rake
Positive
Number of Cutting Edges
1
Hand Direction
Left
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Continuous to Light Interruption
Corner Radius (Decimal)
0.0080
Cutting Width Minimum (Decimal)
0.1181
Cutting Width Minimum (Metric)
3.00
Cutting Width Maximum (Decimal)
0.1181
Cutting Width Maximum (Metric)
3.00
Maximum Depth of Cut (Decimal)
0.7874
Maximum Depth of Cut (Metric)
20.00
Pack quantity
10
Coating Process
CVD
Insert Thickness (Decimal)
0.1690
Kyocera Grooving Insert GML34D CR9025: TKW12552
$29.74
