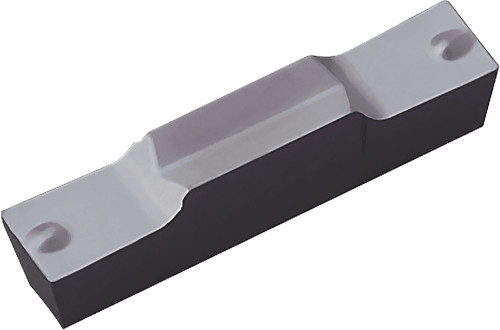

Kyocera Grooving Insert GMG3020000MS PR930: TKT12000

Kyocera Grooving Insert GMG3020000MS PR930, manufacturer part number TKT12000.

Specifications: Insert Thickness: 4.30 mm (0.1690 in); Corner Radius: 0.00 mm (0.0000 in); Cutting Width: 3.00 mm (0.1181 in); Insert Holding Method: Clamp; Insert Length: 20.00 mm (0.7874 in); Old Material Number: 8811133; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing-Medium; Full Radius: No; Usage Classification: Continuous to Light Interruption; Cutting Width Minimum: 3.00 mm (0.1181 in); Cutting Width Maximum: 3.00 mm (0.1181 in); Maximum Depth of Cut: 20.00 mm (0.7874 in); Insert Shape: Irregular; Insert Size: 3020000; Insert Style: GMG; Hand Direction: Neutral; ANSI Designation: GMG3020000MSPR930; Chip Breaker Type: MS; ISO Designation: GMG3020-000MS; Machining Operations: External Grooving, Traversing; Insert Grade: PR930; Workpiece Material: Steel, Stainless Steel; Coating Process: PVD.

Material: Carbide. Coating/Finish: TiCN. Series: KGM. Unit of measure: Metric.
