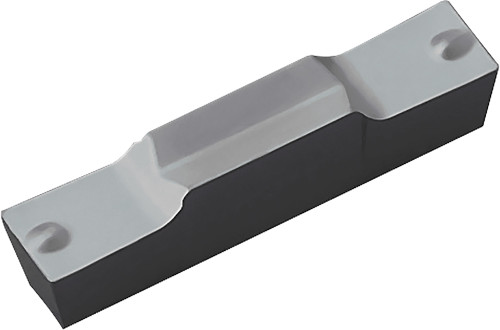

Kyocera Grooving Insert GMG3020020MS KW10: TWE12001

Kyocera Grooving Insert GMG3020020MS KW10, manufacturer part number TWE12001.

Specifications: Insert Thickness: 4.30 mm (0.1690 in); Corner Radius: 0.20 mm (0.0080 in); Cutting Width: 3.00 mm (0.1181 in); Insert Holding Method: Clamp; Insert Length: 20.00 mm (0.7874 in); Old Material Number: 8801382; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing-Medium; Full Radius: No; Usage Classification: Continuous to Light Interruption; Cutting Width Minimum: 3.00 mm (0.1181 in); Cutting Width Maximum: 3.00 mm (0.1181 in); Maximum Depth of Cut: 20.00 mm (0.7874 in); Insert Shape: Irregular; Insert Size: 3020020; Insert Style: GMG; Hand Direction: Neutral; ANSI Designation: GMG3020020MSKW10; Chip Breaker Type: MS; ISO Designation: GMG3020-020MS; Machining Operations: External Grooving, Traversing; Insert Grade: KW10; Workpiece Material: Non-Ferrous.

Material: Carbide. Coating/Finish: Uncoated. Series: KGM. Unit of measure: Metric.
