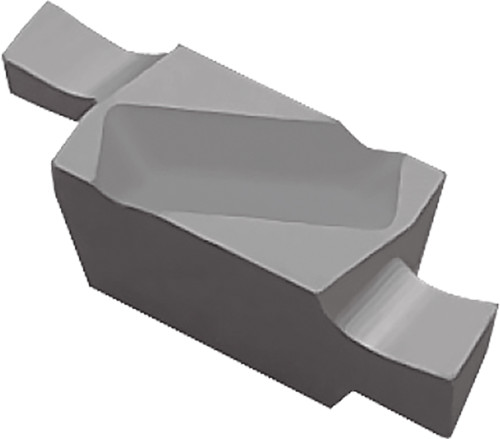

Kyocera Grooving Insert GVFL100AA KW10: TWE02071

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE02071
$56.85

Kyocera GFV grooving insert for non-ferrous metals, irregular shape, positive rake, 2 cutting edges, finishing-medium cutting range, clamp insert holding, left hand. Carbide, uncoated. Manufacturer part number TWE02071.

Specifications

Series
GFV
Unit of Measure
Metric
Material
Carbide
Coating/Finish
Uncoated
ANSI Designation
GVFL100AAKW10
Corner Radius (Metric)
0.05
ISO Designation
GVFL100-005AA
Cutting Width (Metric)
1.00
Insert Thickness (Metric)
4.50
Cutting Width (Decimal)
0.0394
Insert Style
GVF
Machining Operations
Face Grooving
Chip Breaker Type
AA
Insert Shape
Irregular
Insert Holding Method
Clamp
Insert Length (Decimal)
0.4724
Insert Length (Metric)
12.00
Insert Size
100
Insert Grade
KW10
Workpiece Material
Non-Ferrous
Rake
Positive
Number of Cutting Edges
2
Hand Direction
Left
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Continuous to Light Interruption
Corner Radius (Decimal)
0.0020
Cutting Width Minimum (Decimal)
0.0394
Cutting Width Minimum (Metric)
1.00
Cutting Width Maximum (Decimal)
0.0394
Cutting Width Maximum (Metric)
1.00
Maximum Depth of Cut (Decimal)
0.0866
Maximum Depth of Cut (Metric)
2.20
Pack quantity
10
Insert Thickness (Decimal)
0.1770
Kyocera Grooving Insert GVFL100AA KW10: TWE02071
$56.85
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
