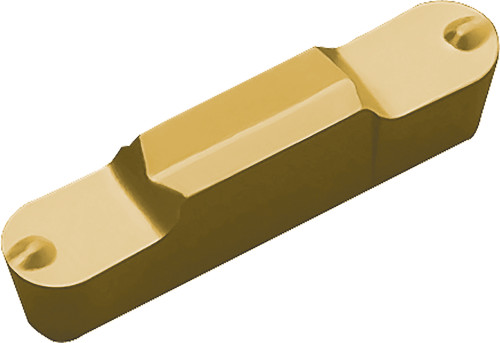

Kyocera Grooving Insert GMG3020150R CR9025: TKW12250

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKW12250
$70.64

Kyocera KGM grooving insert for steel, irregular shape, positive rake, 2 cutting edges, finishing-medium cutting range, clamp insert holding, neutral hand. Carbide, TiCN/TiN (CVD) coating. Manufacturer part number TKW12250.

Specifications

Series
KGM
Unit of Measure
Metric
Material
Carbide
Coating/Finish
TiCN/TiN
ISO Designation
GMG3020-150R
Corner Radius (Metric)
1.50
Insert Thickness (Metric)
4.30
Cutting Width (Metric)
3.00
Machining Operations
Copying, External Grooving, Face Grooving
Cutting Width (Decimal)
0.1181
Insert Style
GMG
ANSI Designation
GMG3020150RCR9025
Chip Breaker Type
R
Insert Shape
Irregular
Insert Holding Method
Clamp
Insert Length (Decimal)
0.7874
Insert Length (Metric)
20.00
Insert Size
3020150
Insert Grade
CR9025
Workpiece Material
Steel
Rake
Positive
Number of Cutting Edges
2
Hand Direction
Neutral
Cutting Range
Finishing-Medium
Full Radius
Yes
Usage Classification
Continuous to Light Interruption
Corner Radius (Decimal)
0.0590
Cutting Width Minimum (Decimal)
0.1181
Cutting Width Minimum (Metric)
3.00
Cutting Width Maximum (Decimal)
0.1181
Cutting Width Maximum (Metric)
3.00
Maximum Depth of Cut (Decimal)
0.7874
Maximum Depth of Cut (Metric)
20.00
Pack quantity
10
Coating Process
CVD
Insert Thickness (Decimal)
0.1690
