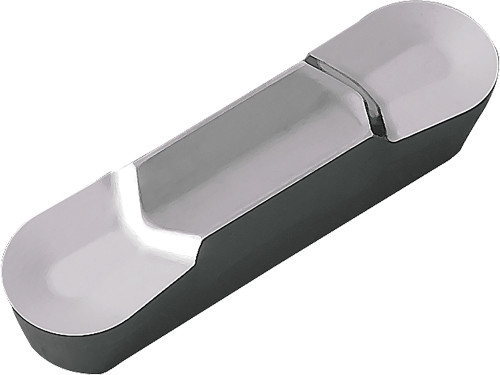

Kyocera Grooving Insert GMGA8030400R KW10: TWE12410

Kyocera Grooving Insert GMGA8030400R KW10, manufacturer part number TWE12410.

Specifications: Insert Thickness: 5.50 mm (0.2170 in); Corner Radius: 4.00 mm (0.1570 in); Cutting Width: 8.00 mm (0.3150 in); Insert Holding Method: Clamp; Insert Length: 30.00 mm (1.1811 in); Old Material Number: 8801409; Rake: Positive; Number of Cutting Edges: 2; Cutting Range: Finishing-Medium; Full Radius: Yes; Usage Classification: Continuous to Light Interruption; Cutting Width Minimum: 8.00 mm (0.3150 in); Cutting Width Maximum: 8.00 mm (0.3150 in); Maximum Depth of Cut: 25.00 mm (0.9843 in); Insert Shape: Irregular; Insert Size: 8030400; Insert Style: GMGA; Hand Direction: Neutral; ANSI Designation: GMGA8030400RKW10; ISO Designation: GMGA8030-400R; Machining Operations: Copying; Insert Grade: KW10; Workpiece Material: Non-Ferrous.

Material: Carbide. Coating/Finish: Uncoated. Series: KGM. Unit of measure: Metric.
