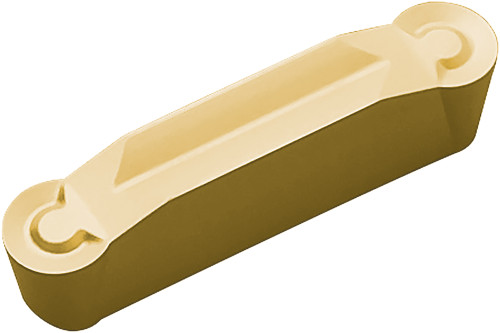

Kyocera Grooving Insert GMM3020150R CR9025: TKW13010

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKW13010
$57.07

Kyocera KGM grooving insert for steel, irregular shape, positive rake, 2 cutting edges, finishing-medium cutting range, clamp insert holding, neutral hand. Carbide, TiCN/TiN (CVD) coating. Manufacturer part number TKW13010.

Specifications

Series
KGM
Unit of Measure
Metric
Material
Carbide
Coating/Finish
TiCN/TiN
ANSI Designation
GMM3020150RCR9025
Corner Radius (Metric)
1.50
ISO Designation
GMM3020-150R
Cutting Width (Metric)
3.00
Insert Thickness (Metric)
4.30
Cutting Width (Decimal)
0.1181
Insert Style
GMM
Machining Operations
Copying
Chip Breaker Type
R
Insert Shape
Irregular
Insert Holding Method
Clamp
Insert Length (Decimal)
0.7874
Insert Length (Metric)
20.00
Insert Size
3020150
Insert Grade
CR9025
Workpiece Material
Steel
Rake
Positive
Number of Cutting Edges
2
Hand Direction
Neutral
Cutting Range
Finishing-Medium
Full Radius
Yes
Usage Classification
Continuous to Light Interruption
Corner Radius (Decimal)
0.0590
Cutting Width Minimum (Decimal)
0.1181
Cutting Width Minimum (Metric)
3.00
Cutting Width Maximum (Decimal)
0.1181
Cutting Width Maximum (Metric)
3.00
Maximum Depth of Cut (Decimal)
0.7874
Maximum Depth of Cut (Metric)
20.00
Pack quantity
10
Coating Process
CVD
Insert Thickness (Decimal)
0.1690
Kyocera Grooving Insert GMM3020150R CR9025: TKW13010
$57.07
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
