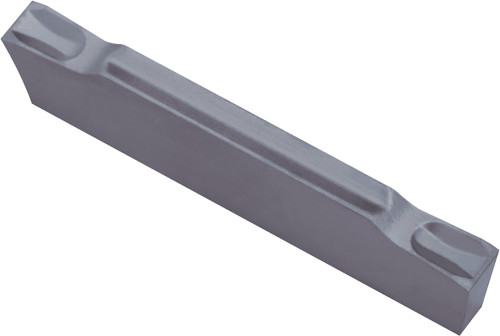

Kyocera GMM 3020LMT4D PR930 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKT62737
$38.60
Kyocera GMM 3020LMT4D PR930 Grade PVD Carbide, 3.00mm Groove Width, Left-Hand Grooving Insert for Light Interruption and Finishing-Medium in (P) Steel and (M) Stainless Steel

Specifications

Series
KGM
Unit of Measure
Metric
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Steel
Grade
PR930
Cutting Width
3 mm
Thickness (Metric)
4.30
Cutting Width (Decimal)
0.12
Style
GMM
Application
Cut-Off|External Deep Grooving|External Grooving
Chip Breaker Type
MT
Thickness (Decimal)
0.17
Insert Holding Method
Clamp
Insert Length (Decimal)
0.79
Insert Length (Metric)
20
Size
3020
Old Material Number
8807295
ANSI Part Number
GMM3020LMT4DPR930
ISO Part Number
GMM3020L-MT-4D
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Left
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Light Interruption
Cutting Width Minimum (Decimal)
0.12
Cutting Width Minimum (Metric)
3
Cutting Width Maximum (Decimal)
0.12
Cutting Width Maximum (Metric)
3
Max Depth of Cut (Decimal)
0.79
Max Depth of Cut (Metric)
20
Pack quantity
10
