Kyocera Grooving Insert GMN22 CR9025: TKW12500
SKU: KYP-TKW12500

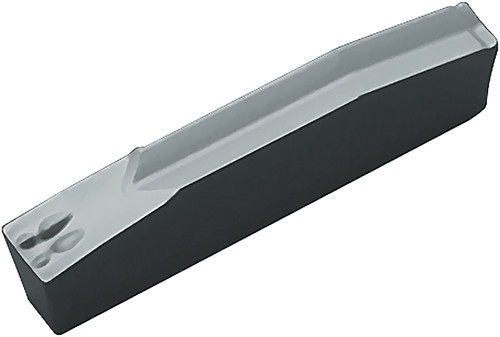

Kyocera Grooving Insert GMN22 KW10, manufacturer part number TWE12500.
Specifications: Insert Thickness: 4.30 mm (0.1690 in); Corner Radius: 0.17 mm (0.0070 in); Cutting Width: 2.20 mm (0.0866 in); Insert Holding Method: Clamp; Insert Length: 20.00 mm (0.7874 in); Old Material Number: 8801457; Rake: Positive; Number of Cutting Edges: 1; Cutting Range: Finishing-Medium; Full Radius: No; Usage Classification: Continuous to Light Interruption; Cutting Width Minimum: 2.20 mm (0.0866 in); Cutting Width Maximum: 2.20 mm (0.0866 in); Maximum Depth of Cut: 17.00 mm (0.6693 in); Insert Shape: Irregular; Insert Size: 22; Insert Style: GMN; Hand Direction: Neutral; ANSI Designation: GMN22KW10; ISO Designation: GMN2.2; Machining Operations: Cut-Off, External Deep Grooving, External Grooving; Insert Grade: KW10; Workpiece Material: Non-Ferrous.
Material: Carbide. Coating/Finish: Uncoated. Series: KGM. Unit of measure: Metric.
