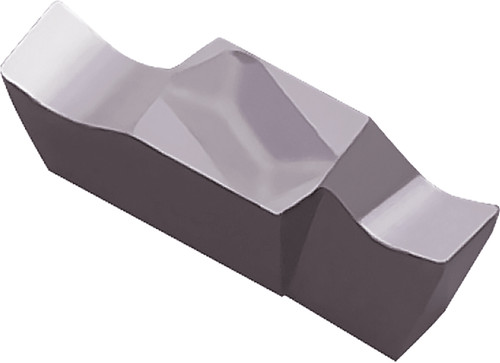

Kyocera GV L125020A PR1225 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE15639
$72.51
Kyocera GV L125020A PR1225 Grade PVD Carbide, 1.25mm Groove Width, Left-Hand Grooving Insert for Continuous and Medium-Roughing in (P) Steel and (M) Stainless Steel

Specifications

Series
GVIG
Unit of Measure
Metric
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
0.20
Grade
PR1225
Cutting Width
1.25 mm
Thickness (Metric)
5
Cutting Width (Decimal)
0.05
Style
GV
Application
Internal Grooving|Small Parts Machining
Chip Breaker Type
A
Thickness (Decimal)
0.20
Insert Holding Method
Clamp
Insert Length (Decimal)
0.47
Insert Length (Metric)
12
Size
125020
Old Material Number
8836882
ANSI Part Number
GVL125020APR1225
ISO Part Number
GVL125-020A
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Left
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Continuous
Corner Radius (Decimal)
0.01
Cutting Width Minimum (Decimal)
0.05
Cutting Width Minimum (Metric)
1.25
Cutting Width Maximum (Decimal)
0.05
Cutting Width Maximum (Metric)
1.25
Max Depth of Cut (Decimal)
0.09
Max Depth of Cut (Metric)
2.30
Pack quantity
10
Kyocera GV L125020A PR1225 Grade PVD Carbide, Indexable Grooving Insert
$72.51
