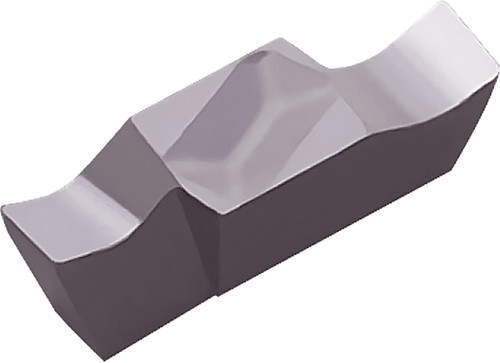

Kyocera GV R200020B PR1225 Grade PVD Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TKE15670
$77.00
Kyocera GV R200020B PR1225 Grade PVD Carbide, 2.00mm Groove Width, Right-Hand Grooving Insert for Continuous and Medium-Roughing in (P) Steel and (M) Stainless Steel

Specifications

Series
GVIG
Unit of Measure
Metric
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Steel
Corner Radius (Metric)
0.20
Grade
PR1225
Cutting Width
2 mm
Thickness (Metric)
5.50
Cutting Width (Decimal)
0.08
Style
GV
Application
Internal Grooving|Small Parts Machining
Chip Breaker Type
B
Thickness (Decimal)
0.22
Insert Holding Method
Clamp
Insert Length (Decimal)
0.59
Insert Length (Metric)
15
Size
200020
Old Material Number
8836919
ANSI Part Number
GVR200020BPR1225
ISO Part Number
GVR200-020B
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Right
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Continuous
Corner Radius (Decimal)
0.01
Cutting Width Minimum (Decimal)
0.08
Cutting Width Minimum (Metric)
2
Cutting Width Maximum (Decimal)
0.08
Cutting Width Maximum (Metric)
2
Max Depth of Cut (Decimal)
0.13
Max Depth of Cut (Metric)
3.20
Pack quantity
10
