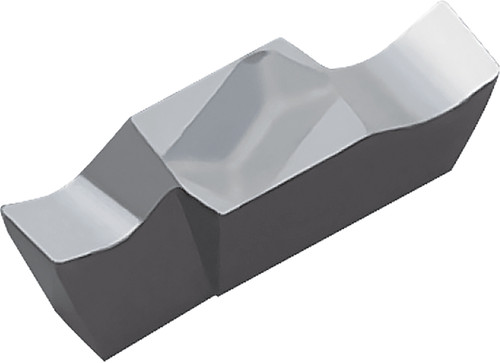

Kyocera GV R300C KW10 Grade Uncoated Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE01950
$71.75
Kyocera GV R300C KW10 Grade Uncoated Carbide, 3.00mm Groove Width, Right-Hand Grooving Insert for Light Interruption and Finishing-Medium in (N) Non-Ferrous Metals

Specifications

Series
GVIG
Unit of Measure
Metric
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials
Corner Radius (Metric)
0.20
Grade
KW10
Cutting Width
3 mm
Thickness (Metric)
6.50
Cutting Width (Decimal)
0.12
Style
GV
Application
Internal Grooving|Small Parts Machining
Chip Breaker Type
C
Thickness (Decimal)
0.26
Insert Holding Method
Clamp
Insert Length (Decimal)
0.83
Insert Length (Metric)
21
Size
300
Old Material Number
8805783
ANSI Part Number
GVR300CKW10
ISO Part Number
GVR300-020C
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Right
Cutting Range
Finishing-Medium
Full Radius
No
Usage Classification
Light Interruption
Corner Radius (Decimal)
0.01
Cutting Width Minimum (Decimal)
0.12
Cutting Width Minimum (Metric)
3
Cutting Width Maximum (Decimal)
0.12
Cutting Width Maximum (Metric)
3
Max Depth of Cut (Decimal)
0.18
Max Depth of Cut (Metric)
4.50
Pack quantity
10
Kyocera GV R300C KW10 Grade Uncoated Carbide, Indexable Grooving Insert
$71.75
