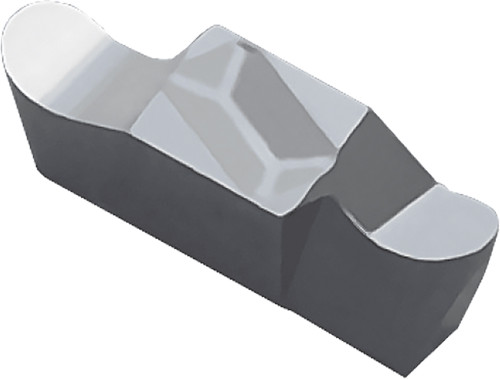

Kyocera GV L100BR KW10 Grade Uncoated Carbide, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWE02061
$71.75
Kyocera GV L100BR KW10 Grade Uncoated Carbide, 2.00mm Groove Width, Left-Hand Grooving Insert for Light Interruption and Finishing-Medium in (N) Non-Ferrous Metals

Specifications

Series
GVIG
Unit of Measure
Metric
Material
Carbide
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials
Corner Radius (Metric)
1
Grade
KW10
Cutting Width
2 mm
Thickness (Metric)
5.50
Cutting Width (Decimal)
0.08
Style
GV
Application
Internal Grooving|Small Parts Machining
Chip Breaker Type
BR
Thickness (Decimal)
0.22
Insert Holding Method
Clamp
Insert Length (Decimal)
0.59
Insert Length (Metric)
15
Size
100
Old Material Number
8811556
ANSI Part Number
GVL100BRKW10
ISO Part Number
GVL200-100BR
Rake
Positive
Number of Cutting Edges
2
Hand of Holder
Left
Cutting Range
Finishing-Medium
Full Radius
Yes
Usage Classification
Light Interruption
Corner Radius (Decimal)
0.04
Cutting Width Minimum (Decimal)
0.08
Cutting Width Minimum (Metric)
2
Cutting Width Maximum (Decimal)
0.08
Cutting Width Maximum (Metric)
2
Max Depth of Cut (Decimal)
0.13
Max Depth of Cut (Metric)
3.20
Pack quantity
10
Kyocera GV L100BR KW10 Grade Uncoated Carbide, Indexable Grooving Insert
$71.75
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
