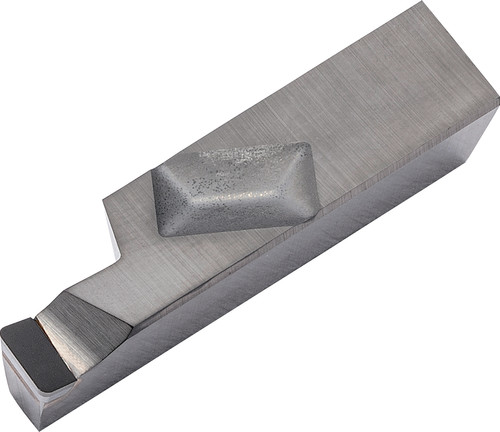

Kyocera GVF R250B KPD010 Grade PCD, Indexable Grooving Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TBE06971
$338.10
Kyocera GVF R250B KPD010 Grade PCD, 2.50mm Groove Width, Right-Hand Grooving Insert for Continuous and Finishing in (N) Non-Ferrous Metals and (S) Heat-Resistant Alloy

Specifications

Series
GFV
Unit of Measure
Metric
Material
PCD
Coating/Finish
Uncoated
Primary Workpiece Material
(N) Non-Ferrous Materials
Corner Radius (Metric)
0.20
Grade
KPD010
Cutting Width
2.50 mm
Thickness (Metric)
5
Cutting Width (Decimal)
0.10
Style
GVF
Application
Face Grooving
Chip Breaker Type
B
Thickness (Decimal)
0.20
Insert Holding Method
Clamp
Insert Length (Decimal)
0.79
Insert Length (Metric)
20
Size
250
Old Material Number
8820829
ANSI Part Number
GVFR250BKPD010
ISO Part Number
GVFR250-020B
Rake
Positive
Number of Cutting Edges
1
Hand of Holder
Right
Cutting Range
Finishing
Full Radius
No
Usage Classification
Continuous
Corner Radius (Decimal)
0.01
Cutting Width Minimum (Decimal)
0.10
Cutting Width Minimum (Metric)
2.50
Cutting Width Maximum (Decimal)
0.10
Cutting Width Maximum (Metric)
2.50
Max Depth of Cut (Decimal)
0.19
Max Depth of Cut (Metric)
4.80
Kyocera GVF R250B KPD010 Grade PCD, Indexable Grooving Insert
$338.10
