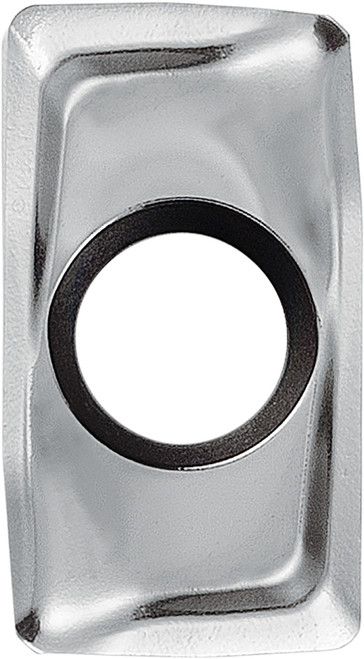

Kyocera Milling Insert LOGT100408FRAM GW25: TWF04150

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWF04150
$35.65

Kyocera Milling Insert LOGT100408FRAM GW25, manufacturer part number TWF04150.

Specifications: Insert Thickness: 4.00 mm (0.1570 in); Corner Radius: 0.80 mm (1/32 in); Insert Holding Method: Screw; Old Material Number: 8848928; Rake: Positive; Number of Cutting Edges: 2; Insert Size: 100408; Cutting Range: Roughing; Hand Direction: Right; Insert Style: LOGT; ANSI Designation: LOGT100408FRAMGW25; Chip Breaker Type: FR-AM; ISO Designation: LOGT100408FR-AM; Included Angle: 90 degrees; Machining Operations: Facing, Helical Milling, Shouldering, Slotting; Insert Grade: GW25; Workpiece Material: Non-Ferrous; Insert Shape: Rectangle.

Material: Carbide. Coating/Finish: Uncoated. Series: MEW. Unit of measure: Metric.

Specifications

Series
MEW
Unit of Measure
Metric
Hand Direction
Right
Material
Carbide
Coating/Finish
Uncoated
Insert Thickness (Metric)
4.00
Corner Radius (Metric)
0.80
Corner Radius (Fractional)
1/32
Machining Operations
Facing, Helical Milling, Shouldering, Slotting
ANSI Designation
LOGT100408FRAMGW25
Insert Style
LOGT
Insert Grade
GW25
Chip Breaker Type
FR-AM
Insert Shape
Rectangle
Insert Holding Method
Screw
Old Material Number
8848928
Workpiece Material
Non-Ferrous
Insert Thickness (Decimal)
0.1570
Rake
Positive
Number of Cutting Edges
2
Insert Size
100408
ISO Designation
LOGT100408FR-AM
Cutting Range
Roughing
Included Angle
90
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/M-Four_MEW_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
