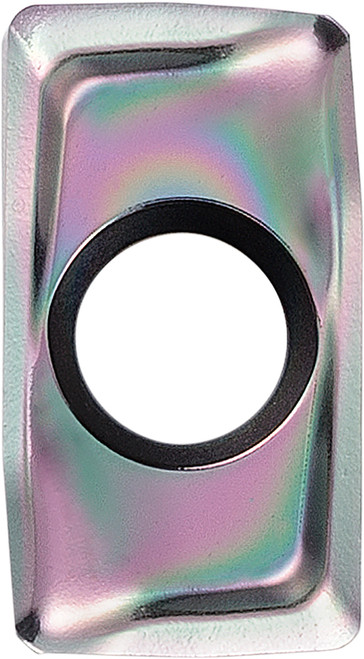

Kyocera LOGT 100408FRAM PDL025 Grade DLC Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLE04150
$49.84
Kyocera LOGT 100408FRAM PDL025 Grade DLC Carbide, Rectangle, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (N) Non-Ferrous Metals

Specifications

Series
MEW
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
DLC
Primary Workpiece Material
(N) Non-Ferrous Materials
Corner Radius
0.80 mm
Corner Radius (Fractional)
1/32
Grade
PDL025
Thickness
4 mm
Style
LOGT
Application
Facing, Helical Milling, Shouldering, Slotting
Thickness (Decimal)
0.16
Shape
90 Degree Rectangle
Insert Holding Method
Screw
Old Material Number
8848950
ANSI Part Number
LOGT100408FRAMPDL025
ISO Part Number
LOGT100408FR-AM
Rake
Positive
Number of Cutting Edges
2
Insert Size
100408
Chipbreaker
FR-AM
Cutting Range
Roughing
Insert Included Angle (Degree)
90 degrees
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/M-Four_MEW_W.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
