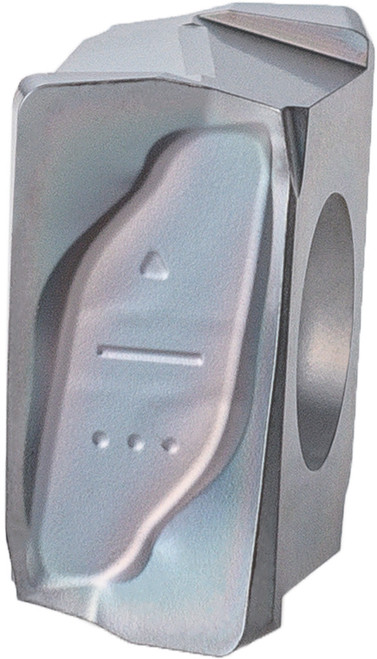

Kyocera Milling Insert LOGU120616ERSM PR1835: TLU00020

Kyocera Milling Insert LOGU120616ERSM PR1835, manufacturer part number TLU00020.

Specifications: Insert Thickness: 9.92 mm (0.3910 in); Corner Radius: 1.60 mm (0.0630 in); Insert Holding Method: Screw; Insert Length: 13.28 mm (0.5228 in); Rake: Positive; Number of Cutting Edges: 4; Insert Size: 1206; Cutting Range: Medium-Roughing; Hand Direction: Right; Insert Style: LOGU; ANSI Designation: LOGU120616ERSMPR1835; Chip Breaker Type: ER-SM; ISO Designation: LOGU120616ER-SM; Included Angle: 90 degrees; Machining Operations: Facing, Helical Milling, High Feed, Plunging, Pocketing, Ramping, Shouldering, Slotting; Insert Grade: PR1835; Workpiece Material: Stainless Steel, High-Temp Alloy, Steel; Insert Shape: Rectangle; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT NANO EX. Series: MA90. Unit of measure: Metric.
