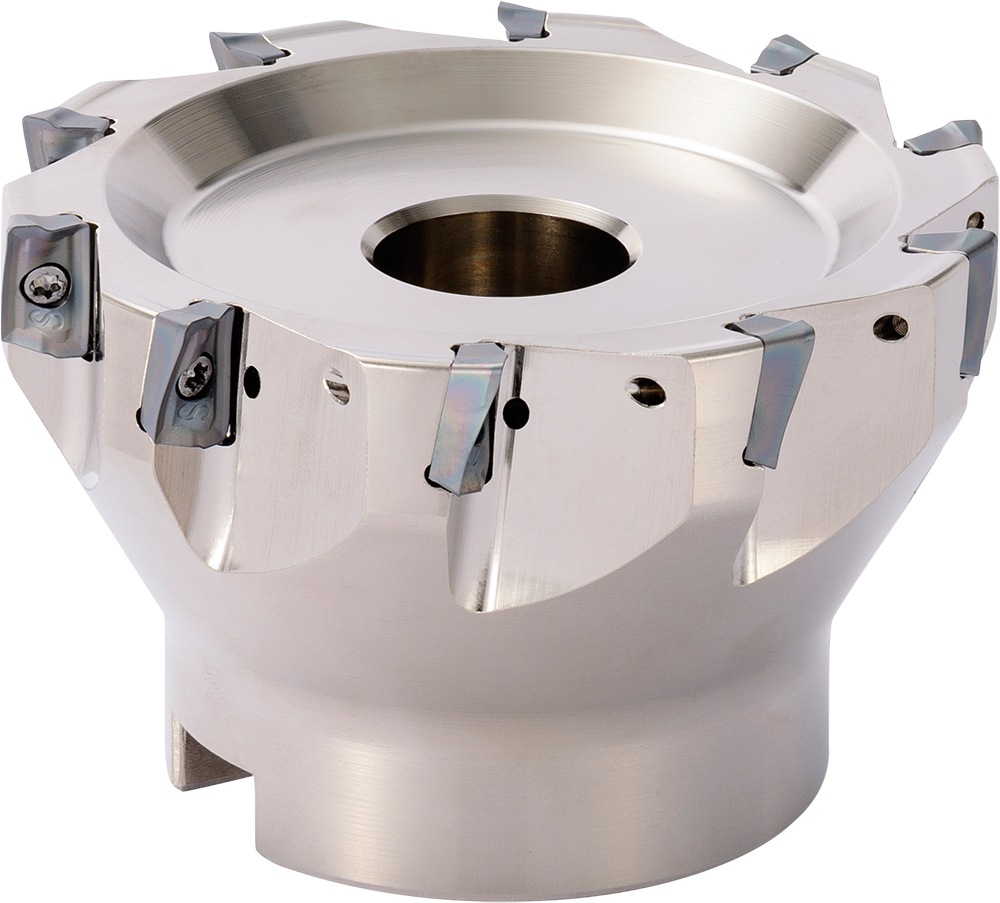

Kyocera MEC 125R1111TM Metric Bore Diameter, 90 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN03415
$2,069.00
Kyocera MEC 125R1111TM Metric Bore Diameter, Standard Pitch, 11 Flute, 90 Degree Face Mill with a 125.00mm Cutting Diameter for Shouldering, Facing, Slotting, Helical Milling, Plunging Applications

Specifications

Series
MEC
Unit of Measure
Metric
Material
Steel
Cutting Diameter (Decimal)
4.92
Cutting Diameter (Metric)
125
Cutting Diameter
125 mm
Number of Flutes
11
Application
Facing, Helical Milling, Plunging, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8829587
ANSI Part Number
MEC125R1111TM
ISO Part Number
MEC125R-11-11T-M
Material Group / Grade
GR99
Tool Style
MEC
Cutting Diameter Minimum (Decimal)
4.92
Number of Inserts
11
Hand of Holder
Right
Max. Depth Of Cut
10 mm
Maximum Depth of Cut (Decimal)
0.39
Cutting Diameter Minimum (Metric)
125
Cutting Maximum (Decimal)
4.92
Connection Bore Diameter (Decimal)
1.57
Connection Bore Diameter (Metric)
40
Contact Surface Diameter Machine Side (Decimal)
3.15
Contact Surface Diameter Machine Side (Metric)
80
Tool Entering Angle
90 degrees
Cutter Pitch
Standard Pitch
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEC-Series_High-Efficiency_Milling.pdf
