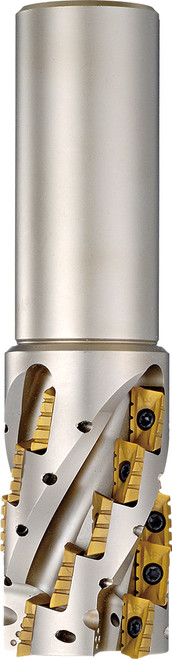

Kyocera MECH 1000W1001142T (MEC Series), Standard Length, Helical End Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN03860
$703.26
Kyocera MECH 1000W1001142T (MEC Series), Standard Length, Helical End Mill with a 1.0000" Cutting Diameter for Shouldering, Slotting, Facing Applications

Specifications

Series
MECH
Unit of Measure
Imperial
Shank Type
Standard Length
Material
Steel
Cutting Diameter (Decimal)
1
Cutting Diameter (Metric)
25.40
Weldon Flat
Yes
Cutting Diameter
1 Inch
Number of Flutes
2
Application
Facing, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
No
Old Material Number
8824599
ANSI Part Number
MECH1000W1001142T
ISO Part Number
MECH1000W100-11-4-2T
Material Group / Grade
GR99
Tool Style
MECH
Cutting Diameter Minimum (Decimal)
1
Number of Inserts
8
Hand of Holder
Right
Max. Depth Of Cut
1.46 Inch
Maximum Depth of Cut (Metric)
37
Cutting Diameter Minimum (Metric)
25.40
Cutting Maximum (Metric)
25.40
Connection Diameter (Decimal)
1
Connection Diameter (Metric)
25.40
Tool Entering Angle
90 degrees
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEC-Series_High-Efficiency_Milling.pdf
