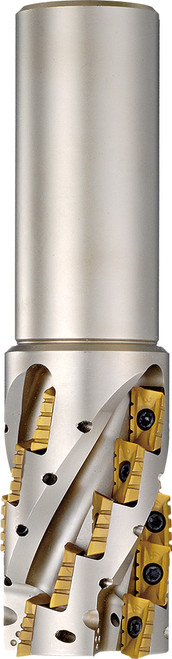

Kyocera MECH 1500W1251742T (MEC Series), Standard Length, Helical End Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN03867
$1,073.44
Kyocera MECH 1500W1251742T (MEC Series), Standard Length, Helical End Mill with a 1.5000" Cutting Diameter for Shouldering, Slotting, Facing Applications

Specifications

Series
MECH
Unit of Measure
Imperial
Shank Type
Standard Length
Material
Steel
Cutting Diameter (Decimal)
1.50
Cutting Diameter (Metric)
38.10
Weldon Flat
Yes
Cutting Diameter
1.50 Inch
Number of Flutes
2
Application
Facing, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
No
Old Material Number
8824626
ANSI Part Number
MECH1500W1251742T
ISO Part Number
MECH1500W125-17-4-2T
Material Group / Grade
GR99
Tool Style
MECH
Cutting Diameter Minimum (Decimal)
1.50
Number of Inserts
8
Hand of Holder
Right
Max. Depth Of Cut
2.32 Inch
Maximum Depth of Cut (Metric)
59
Cutting Diameter Minimum (Metric)
38.10
Cutting Maximum (Metric)
38.10
Connection Diameter (Decimal)
1.25
Connection Diameter (Metric)
31.75
Tool Entering Angle
90 degrees
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEC-Series_High-Efficiency_Milling.pdf
