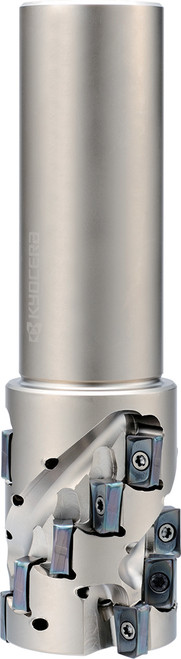

Kyocera MEWH 1500W1251542T (M-FOUR Series), Standard Length, Helical End Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN04094
$1,402.15
Kyocera MEWH 1500W1251542T (M-FOUR Series), Standard Length, Helical End Mill with a 1.5000" Cutting Diameter for Shouldering, Slotting, Facing Applications

Specifications

Series
MEWH
Unit of Measure
Imperial
Shank Type
Standard Length
Material
Steel
Cutting Diameter (Decimal)
1.50
Cutting Diameter (Metric)
38.10
Weldon Flat
Yes
Cutting Diameter
1.50 Inch
Number of Flutes
2
Application
Facing, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8838495
ANSI Part Number
MEWH1500W1251542T
ISO Part Number
MEWH1500W125-15-4-2T
Material Group / Grade
GR99
Tool Style
MEWH
Cutting Diameter Minimum (Decimal)
1.50
Number of Inserts
8
Hand of Holder
Right
Max. Depth Of Cut
2.09 Inch
Maximum Depth of Cut (Metric)
53
Cutting Diameter Minimum (Metric)
38.10
Cutting Maximum (Metric)
38.10
Connection Diameter (Decimal)
1.25
Connection Diameter (Metric)
31.75
Tool Entering Angle
90 degrees
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/M-Four_MEW_W.pdf
Kyocera MEWH 1500W1251542T (M-FOUR Series), Standard Length, Helical End Mill
$1,402.15
