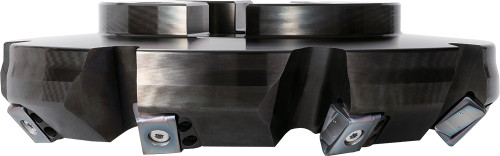

Kyocera MFLN 45160R7TM Metric Bore Diameter, 45 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN08474
$1,711.90
Kyocera MFLN 45160R7TM Metric Bore Diameter, Standard Pitch, 7 Flute, 45 Degree Face Mill with a 160.00mm Cutting Diameter for Shouldering, Facing, Chamfering Applications

Specifications

Series
MFLN
Unit of Measure
Metric
Material
Steel
Cutting Diameter (Decimal)
6.2992 - 7.2441
Cutting Diameter (Metric)
160 - 184
Cutting Diameter
184 mm
Number of Flutes
7
Application
Chamfering, Facing, Shouldering
Insert Holding Method
Screw
Coolant Through
No
Old Material Number
8864849
ANSI Part Number
MFLN45160R7TM
ISO Part Number
MFLN45160R-7T-M
Material Group / Grade
GR99
Tool Style
MFLN
Cutting Diameter Minimum (Decimal)
6.30
Number of Inserts
7
Hand of Holder
Right
Max. Depth Of Cut
12 mm
Maximum Depth of Cut (Decimal)
0.47
Cutting Diameter Minimum (Metric)
160
Cutting Maximum (Decimal)
7.24
Connection Bore Diameter (Decimal)
1.57
Connection Bore Diameter (Metric)
40
Contact Surface Diameter Machine Side (Decimal)
4.33
Contact Surface Diameter Machine Side (Metric)
110
Tool Entering Angle
45 degrees
Cutter Pitch
Standard Pitch
