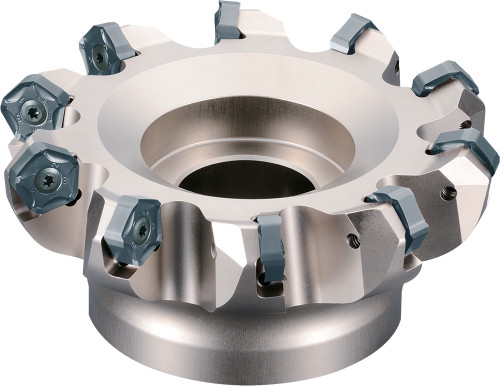

Kyocera MFPN 45200R14T Inch Bore Diameter, 45 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN04464
$2,395.23
Kyocera MFPN 45200R14T Inch Bore Diameter, Fine Pitch, 14 Flute, 45 Degree Face Mill with a 200.00mm Cutting Diameter for Facing, Chamfering Applications

Specifications

Series
MFPN
Unit of Measure
Metric
Material
Steel
Cutting Diameter (Decimal)
7.88 - 8.39
Cutting Diameter (Metric)
200 - 213
Cutting Diameter
213 mm
Number of Flutes
14
Application
Chamfering, Facing
Insert Holding Method
Screw
Coolant Through
No
Old Material Number
8831646
ANSI Part Number
MFPN45200R14T
ISO Part Number
MFPN45200R-14T
Material Group / Grade
GR99
Tool Style
MFPN
Cutting Diameter Minimum (Decimal)
7.87
Number of Inserts
14
Hand of Holder
Right
Max. Depth Of Cut
6 mm
Maximum Depth of Cut (Decimal)
0.24(GM/SM/GH), 0.20 (GL), 0.12 (W)
Maximum Depth of Cut (Metric)
6 (GM/SM/GH), 5 (GL), 3 (W)
Cutting Diameter Minimum (Metric)
200
Cutting Maximum (Decimal)
8.39
Connection Bore Diameter (Decimal)
1.88
Connection Bore Diameter (Metric)
47.63
Contact Surface Diameter Machine Side (Decimal)
5.59
Contact Surface Diameter Machine Side (Metric)
142
Tool Entering Angle
45 degrees
Cutter Pitch
Fine Pitch
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFPN_High_Efficiency_Milling_Cutter.pdf
