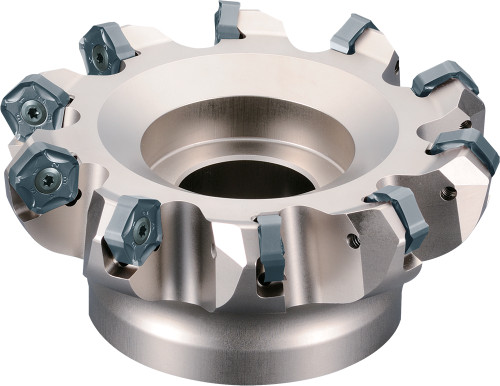

Kyocera 45° Lead Indexable Face Mill MFPN45200R14TM, manufacturer part number THN04495.
Specifications: Cutting Diameter: 200.00 - 213.00 mm (7.8740 - 8.3858 in); Maximum Depth of Cut: 6.00 (GM/SM/GH), 5.00 (GL), 3.00 (W) mm (0.2362 (GM/SM/GH), 0.1969 (GL), 0.1181 (W) in); Hand Direction: Right; Number of Flutes: 14; Insert Holding Method: Screw; Old Material Number: 8832358; Cutting Diameter Minimum: 200.00 mm (7.8740 in); Number of Inserts: 14; Connection Bore Diameter: 60.00 mm (2.3622 in); Contact Surface Diameter Machine Side: 142.00 mm (5.5906 in); Tool Entering Angle: 45 degrees; Cutter Pitch: Fine Pitch; Cutting Diameter Maximum: 213.00 mm (8.3858 in); Insert Shape: Pentagon; Coolant Option: External Coolant; Insert Style: MFPN; ANSI Designation: MFPN45200R14TM; ISO Designation: MFPN45200R-14T-M; Machining Operations: Chamfering, Facing.
Material: Steel. Series: MFPN. Unit of measure: Metric.
