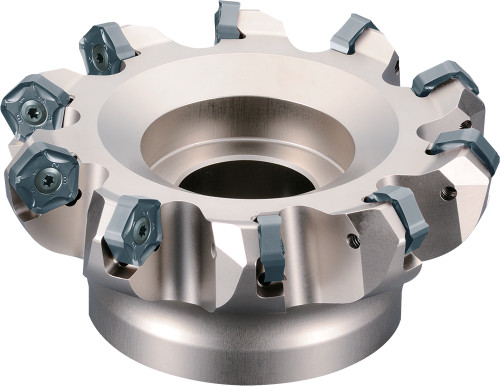

Kyocera MFPN 454000R8T Inch Bore Diameter, 45 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN04522
$1,207.02
Kyocera MFPN 454000R8T Inch Bore Diameter, Fine Pitch, 8 Flute, 45 Degree Face Mill with a 4.0000" Cutting Diameter for Facing, Chamfering Applications

Specifications

Series
MFPN
Unit of Measure
Imperial
Material
Steel
Cutting Diameter (Decimal)
400 - 4.3150
Cutting Diameter (Metric)
101.60 - 109.60
Cutting Diameter
4.32 Inch
Number of Flutes
8
Application
Chamfering, Facing
Insert Holding Method
Screw
Coolant Through
No
Old Material Number
8606112
ANSI Part Number
MFPN454000R8T
ISO Part Number
MFPN454000R-8T
Material Group / Grade
GR99
Tool Style
MFPN
Cutting Diameter Minimum (Decimal)
4
Number of Inserts
8
Hand of Holder
Right
Max. Depth Of Cut
0.24 Inch
Maximum Depth of Cut (Decimal)
0.24(GM/SM/GH), 0.20 (GL), 0.12 (W)
Maximum Depth of Cut (Metric)
6 (GM/SM/GH), 5 (GL), 3 (W)
Cutting Diameter Minimum (Metric)
101.60
Cutting Maximum (Metric)
109.60
Connection Bore Diameter (Decimal)
1.50
Connection Bore Diameter (Metric)
38.10
Contact Surface Diameter Machine Side (Decimal)
2.76
Contact Surface Diameter Machine Side (Metric)
70
Tool Entering Angle
45 degrees
Cutter Pitch
Fine Pitch
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFPN_High_Efficiency_Milling_Cutter.pdf
Kyocera MFPN 454000R8T Inch Bore Diameter, 45 Degree Face Mill
$1,207.02
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
