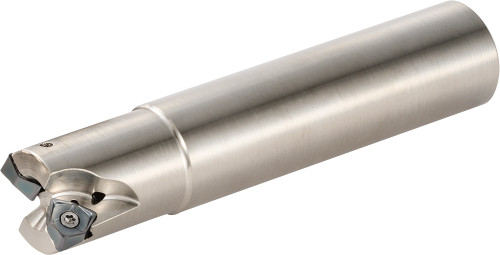

Kyocera MFWN 90063R S32 05 6T, Standard Length, MFWN-Mini End Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN08535
$760.87
Kyocera MFWN 90063R S32 05 6T, Standard Length, MFWN-Mini End Mill with a 63.00mm Cutting Diameter and 6 Flutes for Shouldering, Slotting, Facing, and Plunging Applications

Specifications

Series
MFWN
Unit of Measure
Metric
Shank Type
Standard Length
Material
Steel
Cutting Diameter (Decimal)
2.48
Cutting Diameter (Metric)
63
Weldon Flat
No
Cutting Diameter
63 mm
Number of Flutes
6
Application
Facing, Plunging, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8865628
ANSI Part Number
MFWN90063RS32056T
ISO Part Number
MFWN90063R-S32-05-6T
Material Group / Grade
GR99
Tool Style
MFWN
Cutting Diameter Minimum (Decimal)
2.48
Number of Inserts
6
Hand of Holder
Neutral
Max. Depth Of Cut
5 mm
Maximum Depth of Cut (Decimal)
0.20
Cutting Diameter Minimum (Metric)
63
Cutting Maximum (Decimal)
2.48
Connection Diameter (Decimal)
1.26
Connection Diameter (Metric)
32
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFWN_M-Six.pdf
