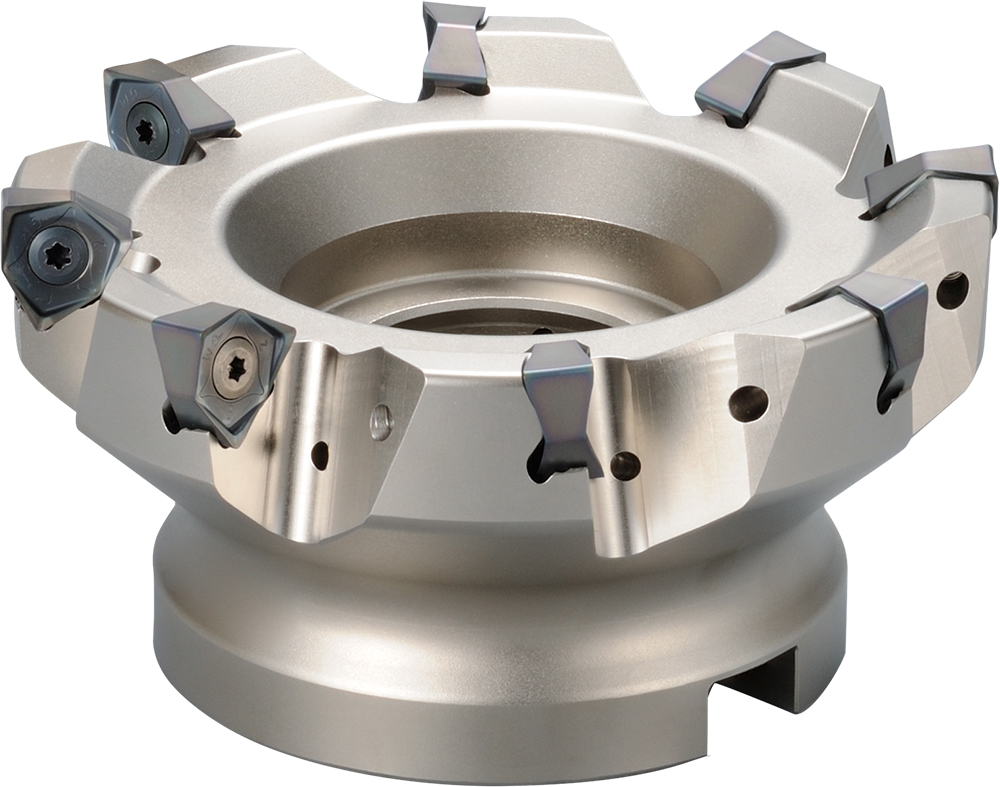

Kyocera MFWN 906000R14T Inch Bore Diameter, 90 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN04749
$2,443.51
Kyocera MFWN 906000R14T Inch Bore Diameter, Extra-Fine Pitch, 14 Flute, 90 Degree Face Mill with a 6.0000" Cutting Diameter for Shouldering, Facing, Slotting, Plunging Applications

Specifications

Series
MFWN
Unit of Measure
Imperial
Material
Steel
Cutting Diameter (Decimal)
6
Cutting Diameter (Metric)
152.40
Cutting Diameter
6 Inch
Number of Flutes
14
Application
Facing, Plunging, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
No
Old Material Number
8835780
ANSI Part Number
MFWN906000R14T
ISO Part Number
MFWN906000R-14T
Material Group / Grade
GR99
Tool Style
MFWN
Cutting Diameter Minimum (Decimal)
6
Number of Inserts
14
Hand of Holder
Right
Max. Depth Of Cut
0.32 Inch
Maximum Depth of Cut (Metric)
8
Cutting Diameter Minimum (Metric)
152.40
Cutting Maximum (Metric)
152.40
Connection Bore Diameter (Decimal)
2
Connection Bore Diameter (Metric)
50.80
Contact Surface Diameter Machine Side (Decimal)
4.02
Contact Surface Diameter Machine Side (Metric)
102
Tool Entering Angle
90 degrees
Cutter Pitch
Extra-Fine Pitch
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFWN_M-Six.pdf
