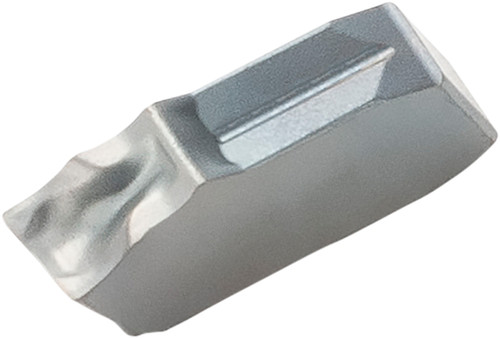

Kyocera PKM 24R020PM6D GW15 Grade Uncoated Carbide, Indexable Cut-Off Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWG40015
$32.73
Kyocera PKM 24R020PM6D GW15 Grade Uncoated Carbide, 2.40mm Cutting Width, Right-Hand Cut-Off Insert for Light Interruption and Medium-Roughing in (K) Cast Iron and (N) Non-Ferrous Materials

Specifications

Series
KPK
Unit of Measure
Imperial
Cutting Direction
Right
Material
Carbide
Primary Workpiece Material
(K) Cast Iron|(N) Non-Ferrous Materials
Cutting Width
0.09 Inch
Application
Cut-Off
Insert Holding Method
Self-Clamp
Old Material Number
8867795
ANSI Part Number
PKM24R020PM6DGW15
ISO Part Number
PKM24R-020PM-6D
Rake
Positive
Material Group / Grade
GW15
Tool Style
PKM
Cutting Width (Decimal)
0.09
Cutting Width (Metric)
2.40
Cutting Width Minimum (Decimal)
0.09
Cutting Width Minimum (Metric)
2.40
Cutting Width Maximum (Decimal)
0.09
Cutting Width Maximum (Metric)
2.40
Corner Radius (Metric)
0.20
Number of Cutting Edges
1
Insert Size
24
Corner Radius (Decimal)
0.01
Chipbreaker
PM
Coating Process
Uncoated
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Light Interruption
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KPK-Series_Cut-Off_Solutions.pdf
