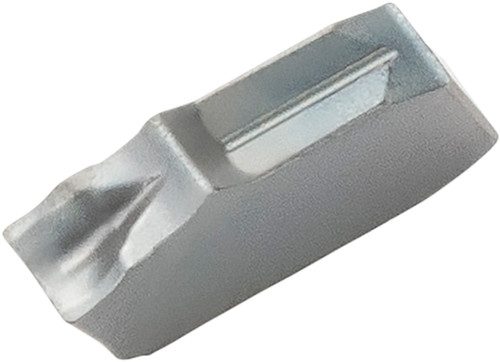

Kyocera PKM 50N030PM GW15 Grade Uncoated Carbide, Indexable Cut-Off Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TWG40018
$35.77
Kyocera PKM 50N030PM GW15 Grade Uncoated Carbide, 5.00mm Cutting Width, Neutral Cut-Off Insert for Light Interruption and Medium-Roughing in (K) Cast Iron and (N) Non-Ferrous Materials

Specifications

Series
KPK
Unit of Measure
Imperial
Cutting Direction
Neutral
Material
Carbide
Primary Workpiece Material
(K) Cast Iron|(N) Non-Ferrous Materials
Cutting Width
0.20 Inch
Application
Cut-Off
Insert Holding Method
Self-Clamp
Old Material Number
8867806
ANSI Part Number
PKM50N030PMGW15
ISO Part Number
PKM50N-030PM
Rake
Positive
Material Group / Grade
GW15
Tool Style
PKM
Cutting Width (Decimal)
0.20
Cutting Width (Metric)
5
Cutting Width Minimum (Decimal)
0.20
Cutting Width Minimum (Metric)
5
Cutting Width Maximum (Decimal)
0.20
Cutting Width Maximum (Metric)
5
Corner Radius (Metric)
0.30
Number of Cutting Edges
1
Insert Size
50
Corner Radius (Decimal)
0.01
Chipbreaker
PM
Coating Process
Uncoated
Cutting Range
Medium-Roughing
Full Radius
No
Usage Classification
Light Interruption
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/KPK-Series_Cut-Off_Solutions.pdf
