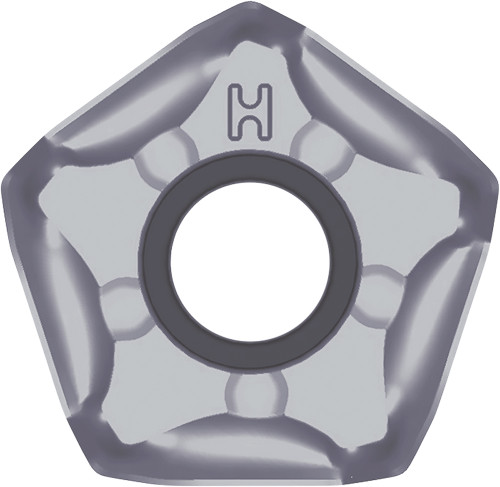

Kyocera PNMU 0905XNERGH PR015S Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLJ59003
$32.79
Kyocera PNMU 0905XNERGH PR015S Grade PVD Carbide, Indexable Milling Insert, Pentagon, Rake Angle, Milling Insert for Roughing in (H) Hardened Materials

Specifications

Series
MFPN
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(H) Hardened Materials
Grade
PR015S
Thickness
5.56 mm
Style
PNMU
Application
Chamfering, Facing
Thickness (Fractional)
7/32
Shape
Pentagon
Insert Holding Method
Screw
Insert Length (Decimal)
0.57
Insert Length (Metric)
14.60
Old Material Number
8864930
ANSI Part Number
PNMU0905XNERGHPR015S
ISO Part Number
PNMU0905XNER-GH
Rake
Negative
Number of Cutting Edges
10
Insert Size
0905
Chipbreaker
XNER-GH
Cutting Range
Roughing
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFPN66_Milling_Series.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR015S_Milling_Inserts.pdf
Kyocera PNMU 0905XNERGH PR015S Grade PVD Carbide, Indexable Milling Insert
$32.79
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
