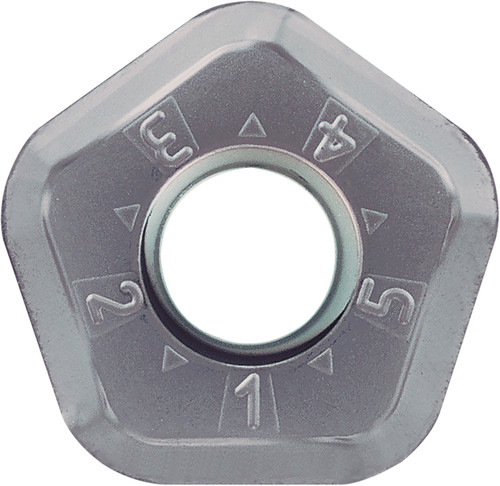

Kyocera PNMU 1205ANERGH PR015S Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLJ59004
$41.73
Kyocera PNMU 1205ANERGH PR015S Grade PVD Carbide, Pentagon, Negative Rake Angle, Right-Hand Milling Insert for Roughing in (H) Hardened Materials

Specifications

Series
MFPN
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(H) Hardened Materials
Grade
PR015S
Thickness
6.17 mm
Style
PNMU
Application
Chamfering, Facing
Thickness (Decimal)
0.24
Shape
Pentagon
Insert Holding Method
Screw
Insert Length (Decimal)
0.71
Insert Length (Metric)
17.98
Old Material Number
8864931
ANSI Part Number
PNMU1205ANERGHPR015S
ISO Part Number
PNMU1205ANER-GH
Rake
Negative
Number of Cutting Edges
10
Insert Size
1205
Chipbreaker
ER-GH
Cutting Range
Roughing
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFPN_High_Efficiency_Milling_Cutter.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR015S_Milling_Inserts.pdf
