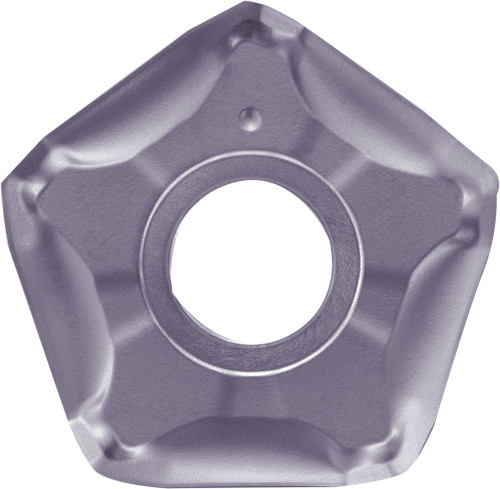

Kyocera PNMU 0905XNERGM PR1535 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC05000
$32.79
Kyocera PNMU 0905XNERGM PR1535 Grade PVD Carbide, Indexable Milling Insert, Pentagon, Rake Angle, Milling Insert for Roughing in (P) Mold Steel, (M) Precipitation Hardened Stainless Steel and (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, (S) Heat-Resistant Alloy

Specifications

Series
MFPN
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(P) Mold Steel|(M) Precipitation Hardened Stainless Steel
Grade
PR1535
Thickness
5.56 mm
Style
PNMU
Application
Chamfering, Facing
Thickness (Fractional)
7/32
Shape
Pentagon
Insert Holding Method
Screw
Insert Length (Decimal)
0.57
Insert Length (Metric)
14.60
Old Material Number
8858726
ANSI Part Number
PNMU0905XNERGMPR1535
ISO Part Number
PNMU0905XNER-GM
Rake
Negative
Number of Cutting Edges
10
Insert Size
0905
Chipbreaker
XNER-GM
Cutting Range
Roughing
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFPN66_Milling_Series.pdf
