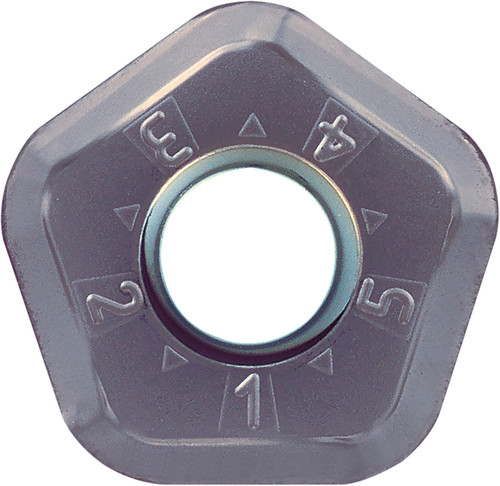

Kyocera PNMU 1205ANERGH PR1535 Grade PVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLC05052
$41.73
Kyocera PNMU 1205ANERGH PR1535 Grade PVD Carbide, Pentagon, Negative Rake Angle, Right-Hand Milling Insert for Roughing in (M) Precipitation Hardened Stainless Steel and (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, (P) Mold Steel, (M) Austenitic Stainless Steel, (M) Martensitic Stainless Steel, (S) Heat-Resistant Alloy

Specifications

Series
MFPN
Unit of Measure
Metric
Cutting Direction
Right
Material
Carbide
Coating/Finish
PVD
Primary Workpiece Material
(M) Precipitation Hardened Stainless Steel
Grade
PR1535
Thickness
6.17 mm
Style
PNMU
Application
Chamfering, Facing
Thickness (Decimal)
0.24
Shape
Pentagon
Insert Holding Method
Screw
Insert Length (Decimal)
0.71
Insert Length (Metric)
17.98
Old Material Number
8842373
ANSI Part Number
PNMU1205ANERGHPR1535
ISO Part Number
PNMU1205ANER-GH
Rake
Negative
Number of Cutting Edges
10
Insert Size
1205
Chipbreaker
ANER-GH
Cutting Range
Roughing
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFPN_High_Efficiency_Milling_Cutter.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
Kyocera PNMU 1205ANERGH PR1535 Grade PVD Carbide, Indexable Milling Insert
$41.73
