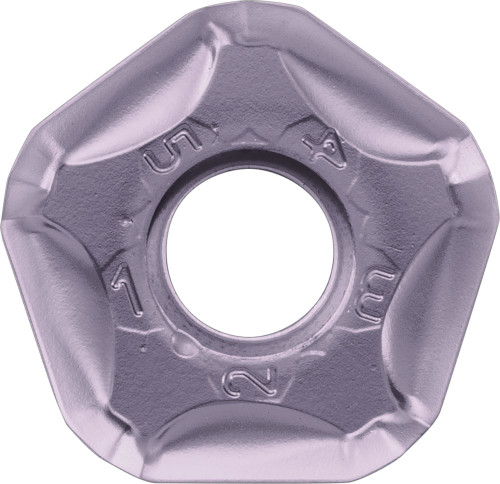

Kyocera Milling Insert PNMU1205ANELGM PR1835: TLU00103

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLU00103
$41.73

Kyocera Milling Insert PNMU1205ANELGM PR1835, manufacturer part number TLU00103.

Specifications: Insert Thickness: 5.56 mm (7/32 in); Insert Holding Method: Screw; Insert Length: 17.88 mm (0.7039 in); Rake: Negative; Number of Cutting Edges: 10; Insert Size: 1205; Cutting Range: Roughing; Hand Direction: Left; Insert Style: PNMU; Insert Shape: Pentagon; ANSI Designation: PNMU1205ANELGMPR1835; Chip Breaker Type: ANEL-GM; ISO Designation: PNMU1205ANEL-GM; Machining Operations: Chamfering, Facing; Insert Grade: PR1835; Workpiece Material: Stainless Steel, High-Temp Alloy, Steel; Coating Process: PVD.

Material: Carbide. Coating/Finish: MEGACOAT NANO EX. Series: MFPN. Unit of measure: Metric.

Specifications

Series
MFPN
Unit of Measure
Metric
Hand Direction
Left
Material
Carbide
Coating/Finish
MEGACOAT NANO EX
ISO Designation
PNMU1205ANEL-GM
Insert Thickness (Fractional)
7/32
ANSI Designation
PNMU1205ANELGMPR1835
Insert Style
PNMU
Insert Thickness (Metric)
5.56
Machining Operations
Chamfering, Facing
Insert Shape
Pentagon
Insert Holding Method
Screw
Insert Length (Decimal)
0.7039
Insert Length (Metric)
17.88
Insert Grade
PR1835
Workpiece Material
Stainless Steel, High-Temp Alloy, Steel
Rake
Negative
Number of Cutting Edges
10
Insert Size
1205
Chip Breaker Type
ANEL-GM
Cutting Range
Roughing
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFPN_High_Efficiency_Milling_Cutter.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/PR18-Series_Milling_Grades.pdf
Coating Process
PVD
