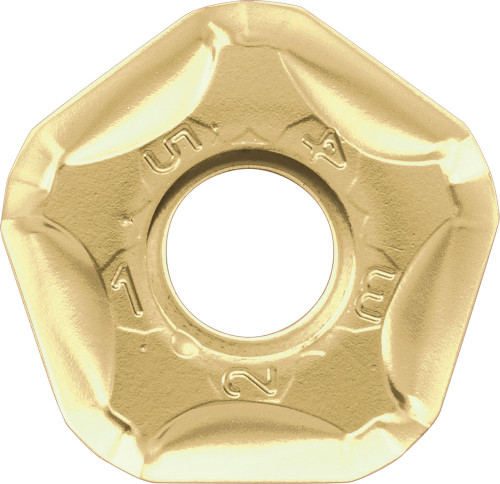

Kyocera PNMU 1205ANELGM CA6535 Grade CVD Carbide, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TMA05150
$39.74
Kyocera PNMU 1205ANELGM CA6535 Grade CVD Carbide, Pentagon, Negative Rake Angle, Left-Hand Milling Insert for Roughing in (S) Heat-Resistant Alloy and (M) Martensitic Stainless Steel

Specifications

Series
MFPN
Unit of Measure
Metric
Cutting Direction
Left
Material
Carbide
Coating/Finish
CVD
Primary Workpiece Material
(S) Heat-Resistant Alloy
Grade
CA6535
Thickness
5.56 mm
Style
PNMU
Application
Chamfering, Facing
Thickness (Fractional)
7/32
Shape
Pentagon
Insert Holding Method
Screw
Insert Length (Decimal)
0.70
Insert Length (Metric)
17.88
Old Material Number
8841738
ANSI Part Number
PNMU1205ANELGMCA6535
ISO Part Number
PNMU1205ANEL-GM
Rake
Negative
Number of Cutting Edges
10
Insert Size
1205
Chipbreaker
ANEL-GM
Cutting Range
Roughing
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFPN_High_Efficiency_Milling_Cutter.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
