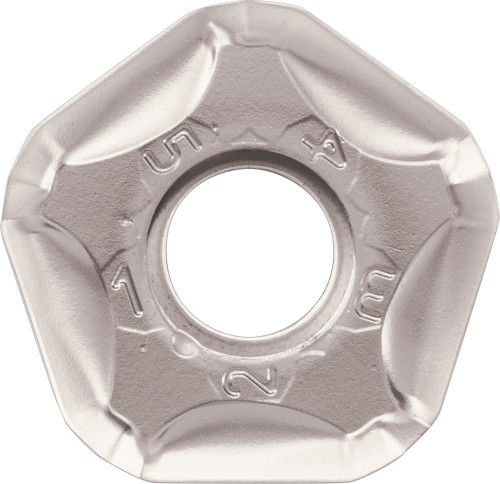

Kyocera PNMU 1205ANELGM TN620M Grade Uncoated Cermet, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TST05150
$31.35
Kyocera PNMU 1205ANELGM TN620M Grade Uncoated Cermet, Pentagon, Negative Rake Angle, Left-Hand Milling Insert for Finishing in (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, (P) Mold Steel

Specifications

Series
MFPN
Unit of Measure
Metric
Cutting Direction
Left
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Free-Cutting Steel|(P) Carbon/Alloy Steel|(P) Mold Steel
Grade
TN620M
Thickness
5.56 mm
Style
PNMU
Application
Chamfering, Facing
Thickness (Fractional)
7/32
Shape
Pentagon
Insert Holding Method
Screw
Insert Length (Decimal)
0.70
Insert Length (Metric)
17.88
Old Material Number
8860939
ANSI Part Number
PNMU1205ANELGMTN620M
ISO Part Number
PNMU1205ANEL-GM
Rake
Negative
Number of Cutting Edges
10
Insert Size
1205
Chipbreaker
ANEL-GM
Cutting Range
Finishing
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MFPN_High_Efficiency_Milling_Cutter.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Automotive_Tooling_Solutions.pdf
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/TN620M_Cermet_Milling.pdf
