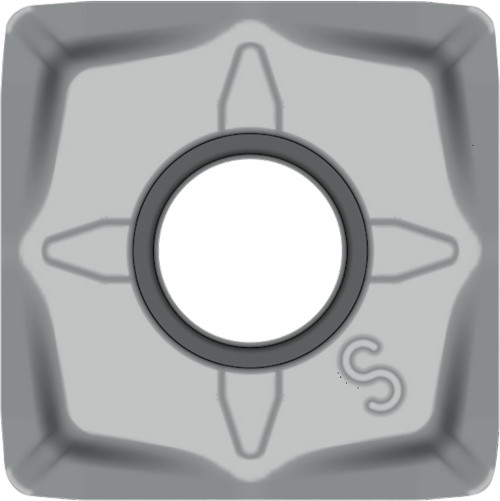

Kyocera SNMU 130508ENGM TN620M Grade Uncoated Cermet, Indexable Milling Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TST05400
$24.55
Kyocera SNMU 130508ENGM TN620M Grade Uncoated Cermet, 90 Degree Square, Negative Rake Angle, Neutral Milling insert for Finishing in (P) Free-Cutting Steel|(P) Carbon/Alloy Steel|(P) Mold Steel and n/a

Specifications

Series
MFSN
Unit of Measure
Metric
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
Uncoated
Primary Workpiece Material
(P) Free-Cutting Steel|(P) Carbon/Alloy Steel|(P) Mold Steel
Corner Radius
0.80 mm
Corner Radius (Fractional)
1/32
Grade
TN620M
Inscribed Circle (Metric)
13
Thickness
5.51 mm
Style
SNMU
Application
Facing
Thickness (Decimal)
0.22
Shape
90 Degree Square
Insert Holding Method
Screw
Old Material Number
8858765
ANSI Part Number
SNMU130508ENGMTN620M
ISO Part Number
SNMU130508EN-GM
Rake
Negative
Number of Cutting Edges
8
Insert Size
130508
Chipbreaker
EN-GM
Cutting Range
Finishing
Insert Included Angle (Degree)
90 degrees
Inscribed Circle (Decimal)
0.51
Pack quantity
10
PDF 3
https://s3-us-west-2.amazonaws.com/catsy.739/TN620M_Cermet_Milling.pdf
