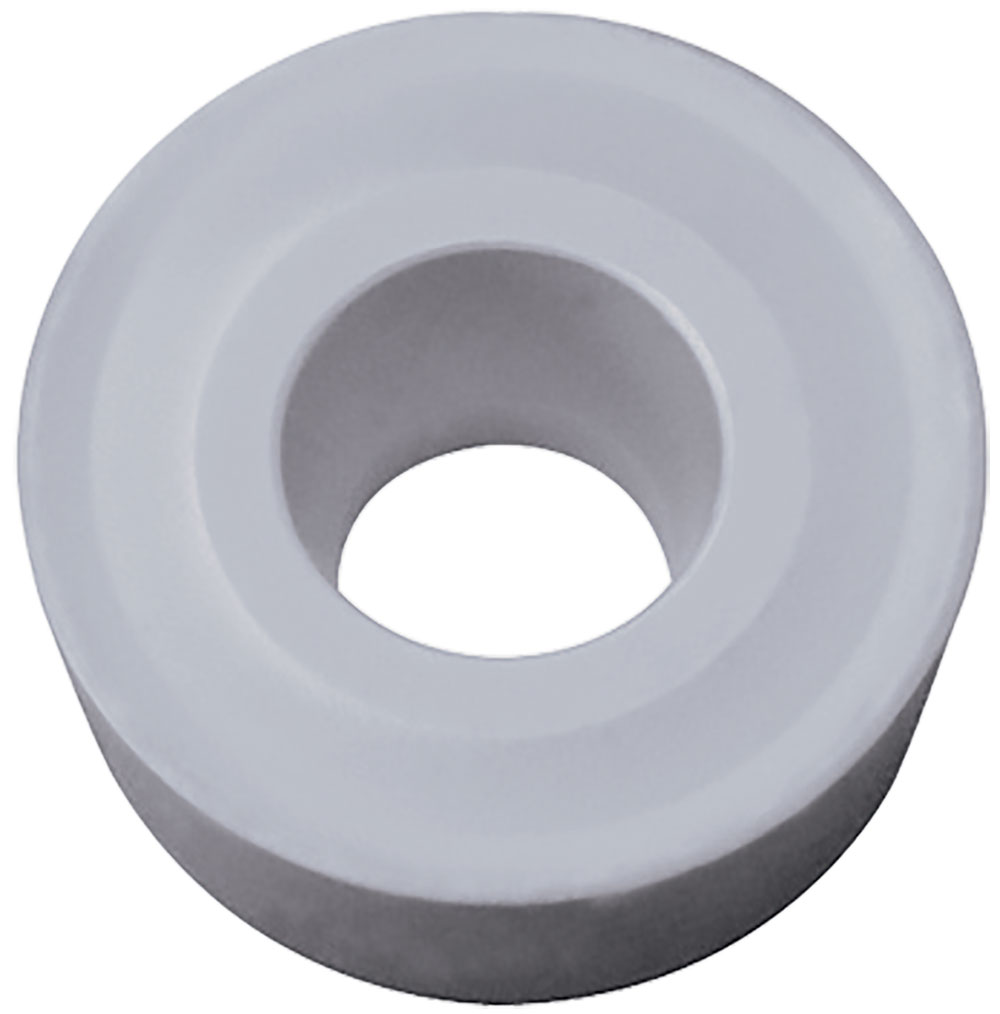

Kyocera RCMX 1204M0 PV720 Grade PVD Cermet, Indexable Turning Insert

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-TLD05101
$19.90
Kyocera RCMX 1204M0 PV720 Grade PVD Cermet, 7 Degree, Round, Positive Rake Angle, Turning Insert for Light Interruption and Medium in (P) Carbon/Alloy Steel

Specifications

Series
ISOI
Unit of Measure
Imperial
Cutting Direction
Neutral
Material
Cermet
Coating/Finish
PVD
Primary Workpiece Material
(P) Carbon/Alloy Steel
Style
RCMX
Application
External Turning, Facing, Undercutting
Shape
Round
Insert Holding Method
Screw or Clamp
Size
1204
Old Material Number
8843162
ANSI Part Number
RCMX1204M0PV720
ISO Part Number
RCMX1204M0
Rake
Positive
Material Group / Grade
PV720
Number of Cutting Edges
n/a
Thickness (Fractional)
3/16
Thickness (Metric)
4.76
Cutting Range
Medium
Usage Classification
Light Interruption
Inscribed Circle (Metric)
12
Inscribed Circle
0.47 Inch
Pack quantity
10
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/Hybrid_Cermet.pdf
PDF 2
https://s3-us-west-2.amazonaws.com/catsy.739/Aerospace_Tooling_Solutions_W.pdf
Kyocera RCMX 1204M0 PV720 Grade PVD Cermet, Indexable Turning Insert
$19.90
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
